Seco Tools 3.15 Cut Diam, 1 Arbor Hole, 0.18 Max Depth of Cut, 45 Indexable Chamfer & Angle Face Mill Takes 6 Inserts, SE 09T3 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.53 02422257 – 08796682

Seco Tools 3.15 Cut Diam, 1 Arbor Hole, 0.18 Max Depth of Cut, 45 Indexable Chamfer & Angle Face Mill Takes 6 Inserts, SE 09T3 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.53 02422257 – 08796682

$147.00 $1,464.82
Review

Seco Tools 3.15" Cut Diam, 1" Arbor Hole, 0.18" Max Depth of Cut, 45 Indexable Chamfer & Angle Face Mill Takes 6 Inserts, SE 09T3 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.53Manufacturer Part #: 02422257S/N: 08796682UNSPSC: 23291600(Mi

SKU: 8796682.0 Category:
Description Reviews (0)

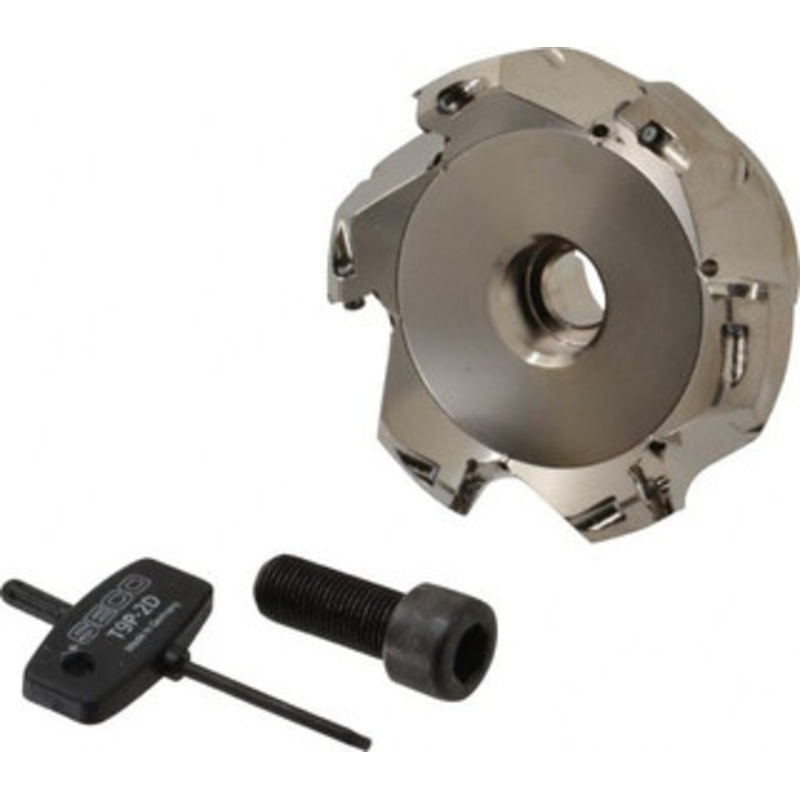

Seco Tools 3.15″ Cut Diam, 1″ Arbor Hole, 0.18″ Max Depth of Cut, 45 Indexable Chamfer & Angle Face Mill Takes 6 Inserts, SE 09T3 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.53

Manufacturer Part #: 02422257

S/N: 08796682

UNSPSC: 23291600

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Cutting Diameter (Decimal Inch) 3.1500 Maximum Cutting Diameter (Decimal Inch) 3.5400 Maximum Depth of Cut (Decimal Inch) 0.1800 Arbor Hole Diameter (Decimal Inch) 1.0000 Arbor Hole Diameter (Inch) 1 Compatible Insert Size Code SE 09T3 Cutter Style R220.53 Cutting Direction Right Hand Insert Holding Method Screw Rake Negative (Radial), Positive (Axial) Series R220.53 Hub Diameter (Decimal Inch) 2.4410 Keyway Width (mm) 9.70 Keyway Width (Decimal Inch) 0.3800 Overall Height (Decimal Inch) 1.9700 Maximum Body Diameter (Decimal Inch) 3.5400 Pitch Type Normal Maximum RPM 12500 Tool Application Facing Number Of Cutter Inserts 6 Coolant Through Yes Number Of Flutes 6 UNSPSC Code 23291600
