Medium to high gas service capacity. Single stage design. Stem type seat mechanism. Delrin cap bushing for smooth adjustments. External self reseating relief valve not designed to protect downstream apparatus.

Features:

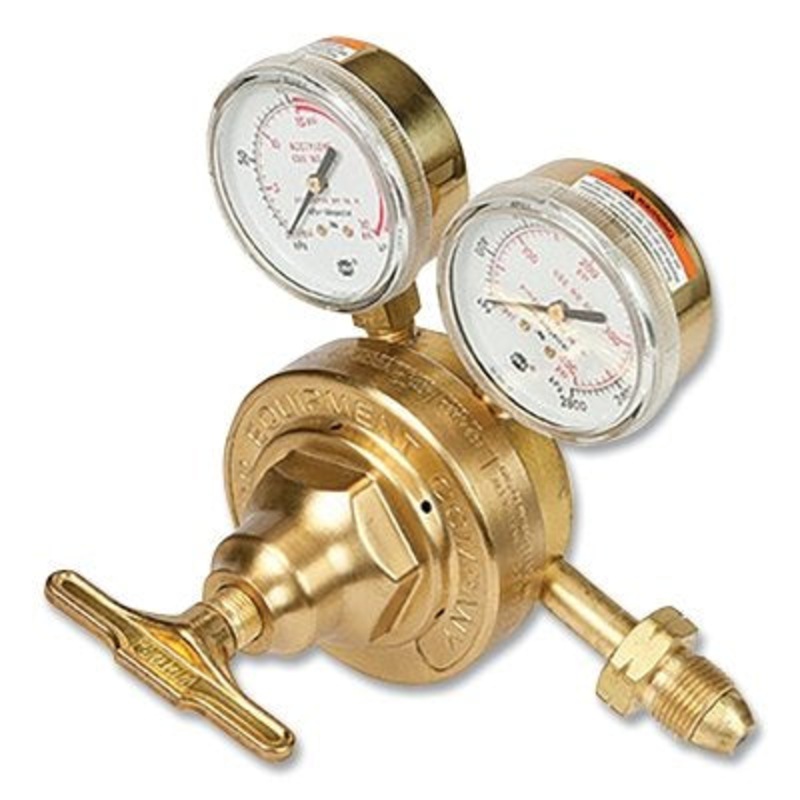

• SR 450 Single Stage Heavy Duty Regulators, Inert Gas, CGA 346, 3,000 psig inlet

Specifications:

• Body Material=Forged Brass
• Depth [Nom]=5 1/8 in
• Diaphragm Material=Stainless Steel
• Diaphragm Size=3 1/4 in
• Filter Material=Bronze; Sintered
• Gas Type=Air; Oxygen; Inert Gas
• Gauge Size=2 1/2 in
• Height [Nom]=7 in
• Inlet Connection=CGA 346
• Inlet Pressure [Max]=3
• 000 psig
• Length [Nom]=5.13 in
• Outlet Connection=9/16 in – 18 (M)
• Outlet Pressure [Max]=125 psig
• Outlet Pressure [Min]=5 psig
• Width [Nom]=7 1/4 in
• Wt.=5 1/8 lb

Quantity: 8
