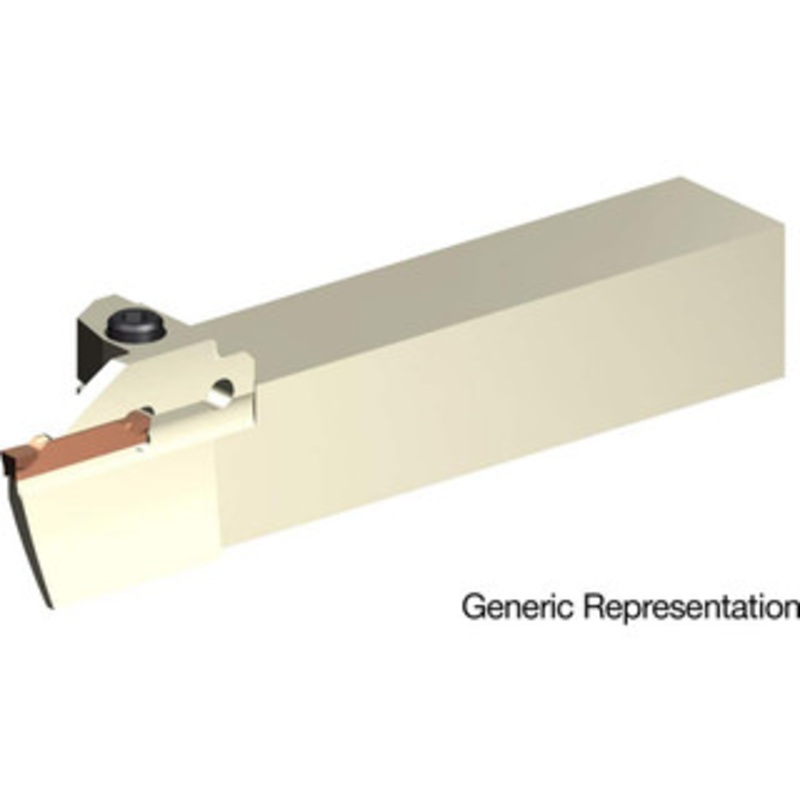

Sumitomo 17.78mm Max Depth, 4mm Min Width, External Right Hand Indexable Face Grooving Toolholder 6 OAL, 1 x 1 Shank, Uses GCMN, GCML, GCMR Inserts, GNDF Toolholder, Series GND U104392 – 36173839

Sumitomo 17.78mm Max Depth, 4mm Min Width, External Right Hand Indexable Face Grooving Toolholder 6 OAL, 1 x 1 Shank, Uses GCMN, GCML, GCMR Inserts, GNDF Toolholder, Series GND U104392 – 36173839

$127.63 $255.25
Review

Sumitomo 17.78mm Max Depth, 4mm Min Width, External Right Hand Indexable Face Grooving Toolholder 6" OAL, 1" x 1" Shank, Uses GCMN, GCML, GCMR Inserts, GNDF Toolholder, Series GNDManufacturer Part #: U104392S/N: 36173839UNSPSC: 23153308(Minimum Order Quant

SKU: 3.6173839E7 Category:
Description Reviews (0)

Sumitomo 17.78mm Max Depth, 4mm Min Width, External Right Hand Indexable Face Grooving Toolholder 6″ OAL, 1″ x 1″ Shank, Uses GCMN, GCML, GCMR Inserts, GNDF Toolholder, Series GND

Manufacturer Part #: U104392

S/N: 36173839

UNSPSC: 23153308

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Internal or External External Toolholder Type Face Grooving Insert Seat Size 4 Hand of Holder Right Hand Cutting Direction Right Hand Maximum Depth of Cut (Decimal Inch) 0.7000 Maximum Depth of Cut (mm) 17.78 Minimum Groove Width (Decimal Inch) 0.1575 Minimum Groove Width (mm) 4.00 Toolholder Style GNDF Insert Holding Method Screw Insert Compatibility GCML, GCMN, GCMR Compatible Insert Size Code GCML, GCMN, GCMR Shank Width/Diameter (Decimal Inch) 1.0000 Shank Width/Diameter (Inch) 1 Shank Width/Diameter (mm) 25.40 Shank Height (mm) 25.40 Shank Height (Inch) 1 Shank Height (Decimal Inch) 1.0000 Series GND Shank Length (Decimal Inch) 4.3620 Overall Length (Inch) 6 Overall Length (mm) 152.40 Overall Length (Decimal Inch) 6.0000 Multi-use Tool No Maximum Workpiece Diameter (Decimal Inch) 2.1650 Back of Bar to Cutting Edge (Decimal Inch) 1.0000 Head Length (Decimal Inch) 1.6380 Maximum Groove Outside Diameter (mm) 55.00 Minimum Axial Groove Inside Diameter(mm) 40.00 Toolholder Material Steel Coolant Through No
