Sumitomo 9/32 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 4.2913 OAL U103711 – 53941787

Sumitomo 9/32 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 4.2913 OAL U103711 – 53941787

$88.64 $177.27
Review

Sumitomo 9/32" 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 4.2913" OALManufacturer Part #: U103711S/N: 53941787UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)9/32Drill Bit Size (Decimal Inch)0.2813D

SKU: 5.3941787E7 Category:
Description Reviews (0)

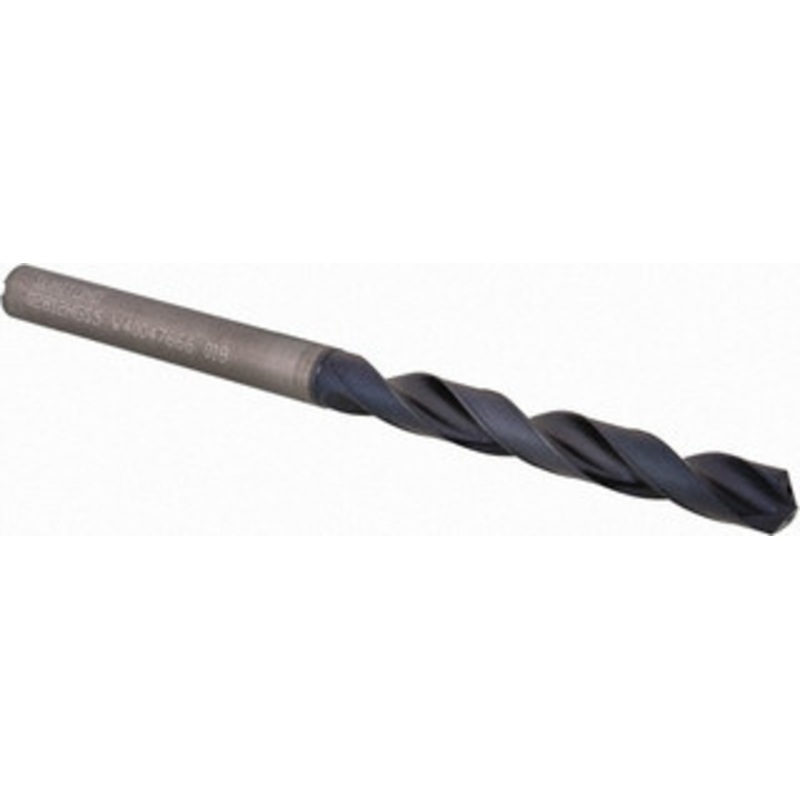

Sumitomo 9/32″ 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 4.2913″ OAL

Manufacturer Part #: U103711

S/N: 53941787

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 9/32 Drill Bit Size (Decimal Inch) 0.2813 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 135 Primary Workpiece Material Cast Iron, Stainless Steel, Steel Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating TiAlCr, TiSi Primary Workpiece Material Code K, M, P, S Shank Diameter (Decimal Inch) 0.2812 Overall Length (Decimal Inch) 4.2913 Flute Length (Decimal Inch) 2.2047 Series MDW-HGS Tool Application Metal Cutting Flute By Diameter Ratio 5xD Shank Length (Decimal Inch) 2.0866 Drill Point Length (mm) 1.48 Drill Point Length (Decimal Inch) 0.0582 Drill Bit Diameter Tolerance h8 Web Configuration Tapered Shank Type Straight-Cylindrical Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 UNSPSC Code 23241634
