Sale!

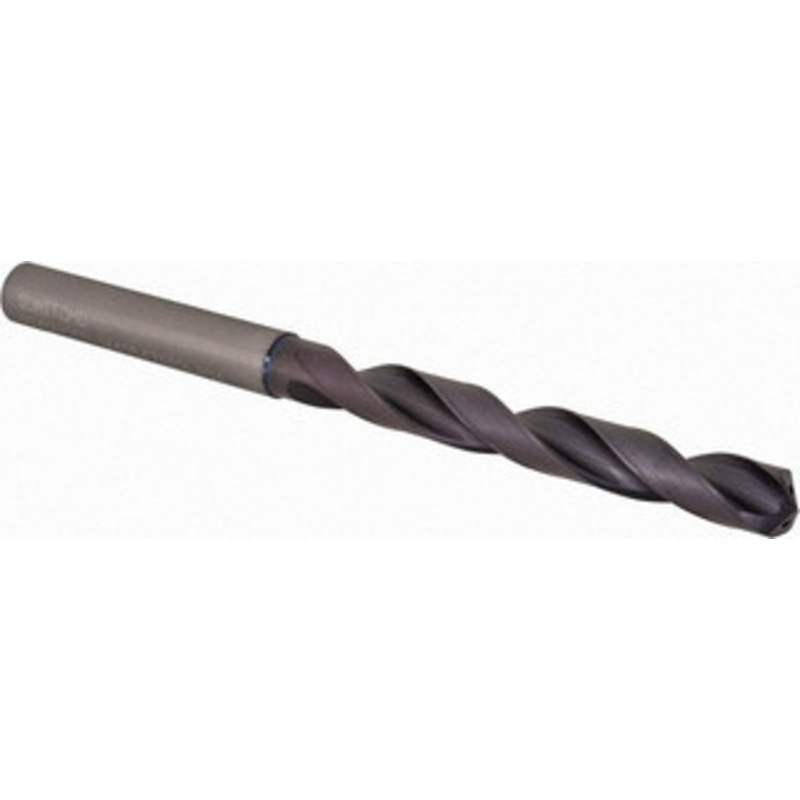

Sumitomo 9.4mm 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 136mm OAL 5VHY206 – 53941423

Sumitomo 9.4mm 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 136mm OAL 5VHY206 – 53941423

$128.47 $256.93
Review

Sumitomo 9.4mm 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 136mm OALManufacturer Part #: 5VHY206S/N: 53941423UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (mm)9.40Drill Bit Size (Decimal Inch)0.3701Drill

SKU: 5.3941423E7 Category:
Description Reviews (0)

Sumitomo 9.4mm 135 Solid Carbide Jobber Drill TiAlCr/TiSi Finish, 136mm OAL

Manufacturer Part #: 5VHY206

S/N: 53941423

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 9.40 Drill Bit Size (Decimal Inch) 0.3701 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 135 Primary Workpiece Material Cast Iron, Stainless Steel, Steel Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating TiAlCr, TiSi Primary Workpiece Material Code K, M, P, S Shank Diameter (Decimal Inch) 0.3937 Overall Length (mm) 136.00 Overall Length (Decimal Inch) 5.3543 Flute Length (mm) 76.00 Flute Length (Decimal Inch) 2.9921 Series MDW-HGS Tool Application Metal Cutting Flute By Diameter Ratio 5xD Shank Diameter (mm) 10.00 Shank Length (mm) 56.00 Shank Length (Decimal Inch) 2.2047 Drill Point Length (mm) 1.95 Drill Point Length (Decimal Inch) 0.0766 Drill Bit Diameter Tolerance h8 Web Configuration Tapered Shank Type Straight-Cylindrical Drill Bit Size Range (Decimal Inch) 0.3500 – 0.4000 Drill Bit Size Range (mm) 9.00 – 10.00 UNSPSC Code 23241634
