Sale!
Sumitomo VNMG-332 ESU AC630M Carbide Turning Insert Al2O3 Finish, 3/8 Inscribed Circle, 1/32 Corner Radius, 35 Diamond 19PWAPS – 71201057

Sumitomo VNMG-332 ESU AC630M Carbide Turning Insert Al2O3 Finish, 3/8 Inscribed Circle, 1/32 Corner Radius, 35 Diamond 19PWAPS – 71201057

$14.06 $23.43
Review

Sumitomo VNMG-332 ESU AC630M Carbide Turning Insert Al2O3 Finish, 3/8" Inscribed Circle, 1/32" Corner Radius, 35 DiamondManufacturer Part #: 19PWAPSS/N: 71201057UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Relief Angle0Inser

SKU: 7.1201057E7 Category:
Description Reviews (0)

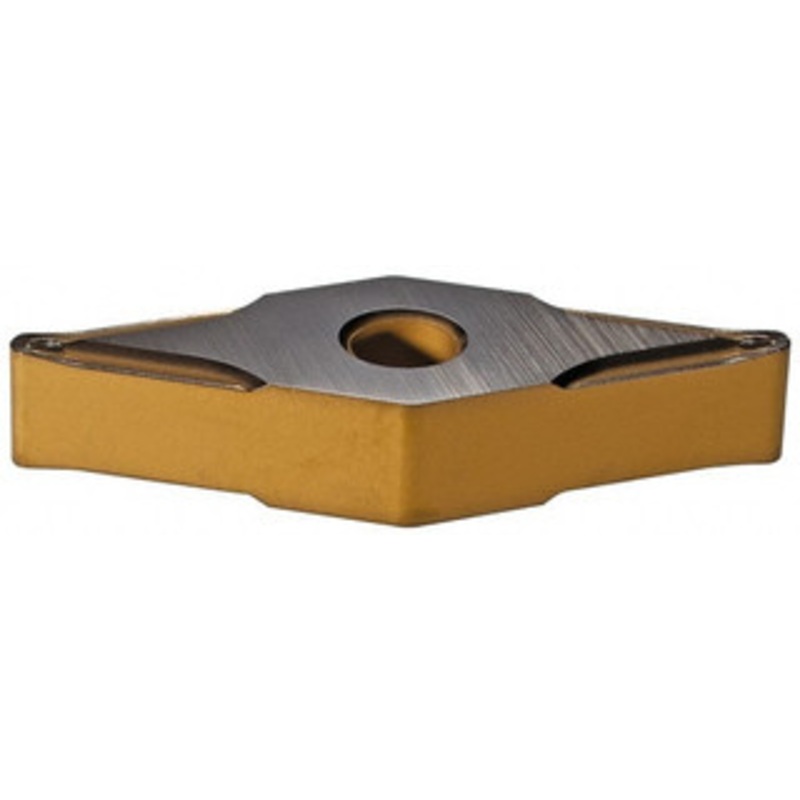

Sumitomo VNMG-332 ESU AC630M Carbide Turning Insert Al2O3 Finish, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 35 Diamond

Manufacturer Part #: 19PWAPS

S/N: 71201057

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style VNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0313 Included Angle 35.0 Manufacturer Grade AC630M Coating/Finish Al2O3 Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series VN Inscribed Circle (Inch) 3/8 Inscribed Circle (Decimal Inch) 0.3750 Insert Material Solid Carbide Insert Shape Diamond Insert Shape Code V Hole Diameter (Decimal Inch) 0.1500 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process CVD Rake Positive Insert Length (Decimal Inch) 0.6535 Secondary Workpiece Material Stainless Steel Secondary Workpiece Material Code M Ansi Code VNMG332ESU Iso Code VNMG160408N-SU Standards ANSI, ISO 13399 Material Grade C5, C5A, C6, C7 Chip Breaker ESU Rake Angle 13 Insert Size Code 332
