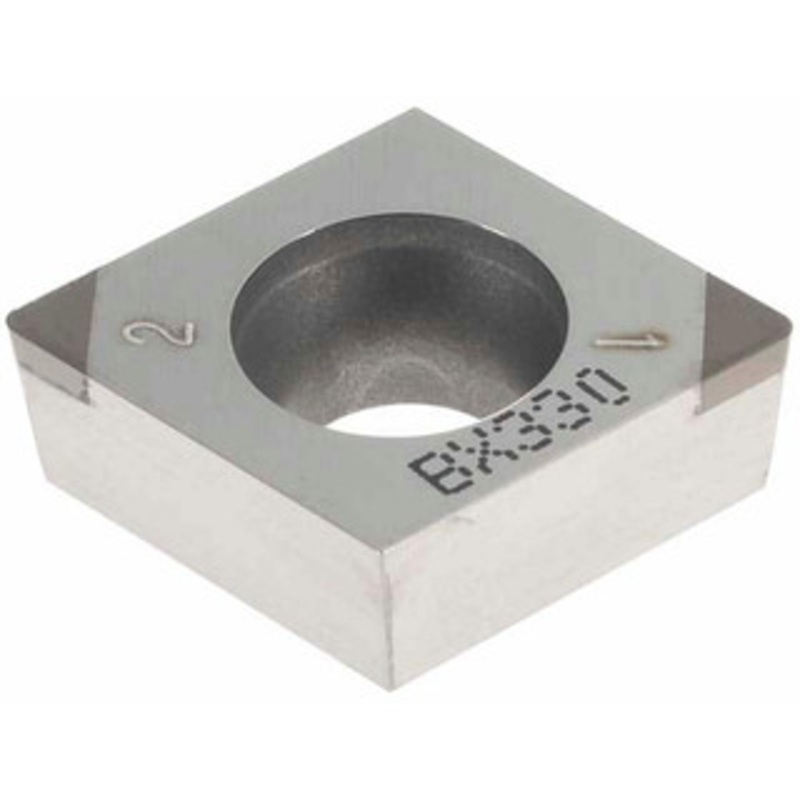

Tungaloy 2QP-CCMW32.51 BX330 PCBN Turning Insert Uncoated, 3/8 Inscribed Circle, 1/64 Corner Radius, 80 Diamond, Series QP Mini-Tip 6817913 – 01686757

Tungaloy 2QP-CCMW32.51 BX330 PCBN Turning Insert Uncoated, 3/8 Inscribed Circle, 1/64 Corner Radius, 80 Diamond, Series QP Mini-Tip 6817913 – 01686757

$57.19 $114.37
Review

Tungaloy 2QP-CCMW32.51 BX330 PCBN Turning Insert Uncoated, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 Diamond, Series QP Mini-TipManufacturer Part #: 6817913S/N: 01686757UNSPSC: 23242105UPC: 677162179136(Minimum Order Quantity=1, Package Quantity=1)Spe

SKU: 1686757.0 Category:
Description Reviews (0)

Tungaloy 2QP-CCMW32.51 BX330 PCBN Turning Insert Uncoated, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 80 Diamond, Series QP Mini-Tip

Manufacturer Part #: 6817913

S/N: 01686757

UNSPSC: 23242105

UPC: 677162179136

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert Code CCMW32.51 ISO Insert Code CCMW09T304 Relief Angle 7 Insert Style CCMW Corner Radius (Inch) 1/64 Corner Radius (Decimal Inch) 0.0157 Included Angle 80 Manufacturer Grade BX330 Coating/Finish Bright/Uncoated Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 5/32 Insert Thickness (Decimal Inch) 0.1563 Series 2QP-CCM/GW Inscribed Circle (Inch) 3/8 Inscribed Circle (Decimal Inch) 0.3750 Insert Material PCBN Insert Shape C – Diamond (Rhombic) 80-Deg Chip Breaker Operation Finishing Grade Characteristics Hardened Materials (H) – High Wear Resistance to Moderate Wear-Resistance and Toughness Number Of Cutting Edges 2 Side Clearance Positive Insert Shape Code C Hole Diameter (Decimal Inch) 0.1730 Maximum Depth of Cut (Decimal Inch) 0.0197 Insert Holding Method Screw Width (Inch) 3/8 Clearance Code C Tolerance Code M Coating Process Uncoated Length Range (Decimal Inch) 0.3000 – 0.4000 Rake Positive Insert Length (Decimal Inch) 0.3820 Primary Workpiece Material Hard Material Primary Workpiece Material Code H Iso Code CCMW32.51 Standards ANSI, ISO Manufacturers Catalog Number 6817913 Material Grade Fine Grain Single or Multi Tipped Multi Tipped Proprietary Coating Designation Uncoated Coating Classification Uncoated Chip Breaker Flat Top Rake Angle 0 Cutting Edge Style Honed Industry Standard Number 2QP-CCMW 32.51 Width (Decimal Inch – 4 Decimals) 0.3750 Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring Tip Length (Decimal Inch) 0.0910 ANSI Size Code 32.51 ISO Size Code 09T304 UNSPSC Code 23242105 Insert Size Code 32.51
