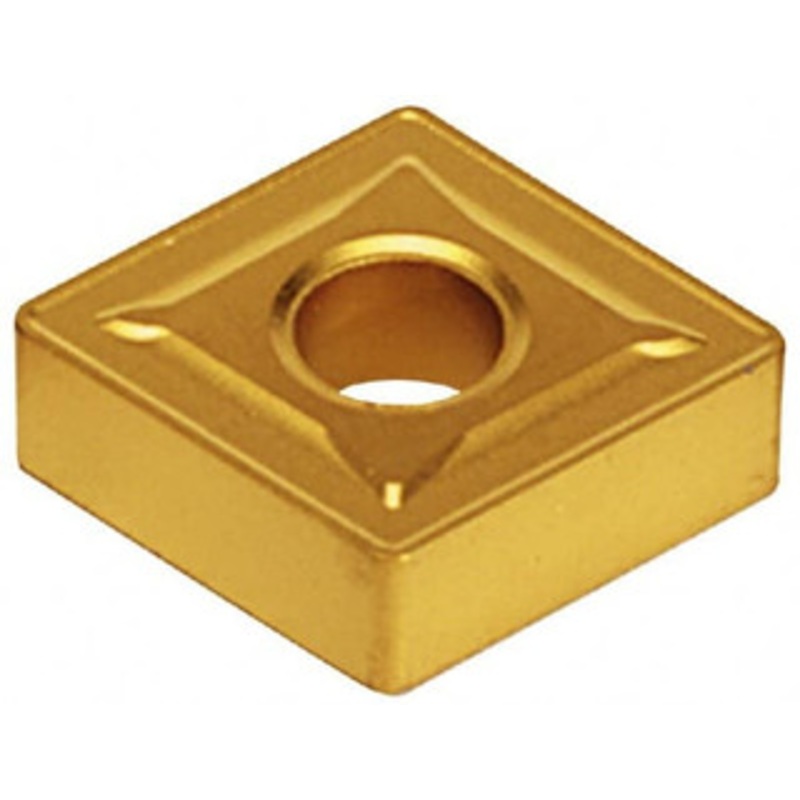

Tungaloy CNMG432 T5115 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond 6852908 – 01684786

Tungaloy CNMG432 T5115 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Diamond 6852908 – 01684786

$13.12 $21.87
Review

Tungaloy CNMG432 T5115 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 DiamondManufacturer Part #: 6852908S/N: 01684786UNSPSC: 23242105UPC: 677162020421(Minimum Order Quantity=1, Package Quantity=1)Specifications:Re

SKU: 1684786.0 Category:
Description Reviews (0)

Tungaloy CNMG432 T5115 Carbide Turning Insert TiCN/Al2O3 Finish, 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80 Diamond

Manufacturer Part #: 6852908

S/N: 01684786

UNSPSC: 23242105

UPC: 677162020421

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style CNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80degree Manufacturer Grade T5115 Coating/Finish TiCN, Al2O3, TiN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CNMG Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Diamond 80 Number Of Cutting Edges 4 Insert Shape Code C Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (Decimal Inch) 0.2362 Insert Holding Method Clamp, Pin Width (Inch) 1/2in Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Negative Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Cast Iron Primary Workpiece Material Code K Iso Code CNMG 432 Standards ANSI, ISO Manufacturers Catalog Number 6852908 Material Grade K10, K20 Proprietary Coating Designation Multilayer Coating Coating Classification CVD Chip Breaker Common Rake Angle -15 Cutting Edge Style Chamfered & Honed Industry Standard Number CNMG 432 Width (Decimal Inch – 4 Decimals) 0.5000in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
