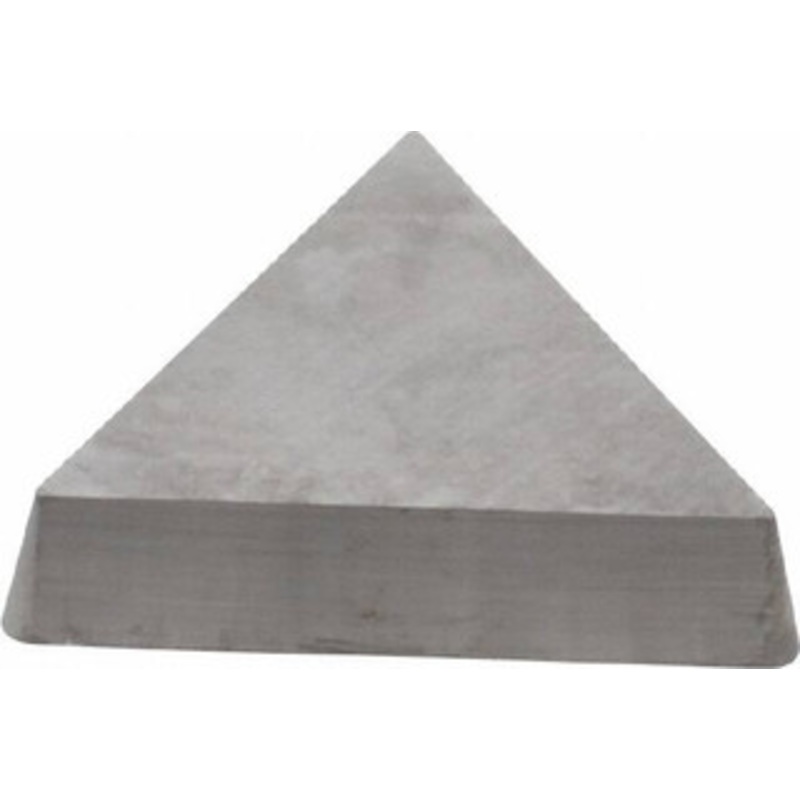

Tungaloy TPG322 TH10 Carbide Turning Insert Uncoated, 3/8″ Inscribed Circle, 1/32″ Corner Radius, 60 Triangle
Manufacturer Part #: 6808852
S/N: 01686252
UNSPSC: 23242105
UPC: 677162088520
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle |
11 |
| Insert Style |
TPGN |
| Corner Radius (Inch) |
1/32 |
| Corner Radius (Decimal Inch) |
0.0315 |
| Included Angle |
60degree |
| Manufacturer Grade |
TH10 |
| Coating/Finish |
Bright/Uncoated |
| Wiper Edge |
No |
| Insert Hand |
Neutral |
| Insert Thickness (Inch) |
1/8 |
| Insert Thickness (Decimal Inch) |
0.1250 |
| Series |
TPM/GN |
| Inscribed Circle (Inch) |
3/8 |
| Inscribed Circle (Decimal Inch) |
0.3750 |
| Insert Material |
Carbide |
| Insert Shape |
Triangle |
| Number Of Cutting Edges |
3 |
| Insert Shape Code |
T |
| Maximum Depth of Cut (Decimal Inch) |
0.0787 |
| Insert Holding Method |
Clamp |
| Clearance Code |
P |
| Tolerance Code |
G |
| Coating Process |
Uncoated |
| Length Range (Decimal Inch) |
0.6500 – 0.7000 |
| Rake |
Positive |
| Insert Length (Decimal Inch) |
0.6500 |
| Primary Workpiece Material |
Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code |
K, N, S, H |
| Iso Code |
TPG 322 |
| Standards |
ANSI, ISO |
| Manufacturers Catalog Number |
6808852 |
| Material Grade |
P10, M10, K10, N10 |
| Proprietary Coating Designation |
Uncoated |
| Coating Classification |
Uncoated |
| Chip Breaker |
Flat Top |
| Rake Angle |
0 |
| Cutting Edge Style |
Honed |
| Industry Standard Number |
TPGN 322 |
| Width (Decimal Inch – 4 Decimals) |
0.6500in |
| Multi-Use Tool |
Yes |
| Full Radius |
No |
| Multi-Use Application |
Turning, Facing, Boring |
| UNSPSC Code |
23242105 |
| Insert Size Code |
322 |
