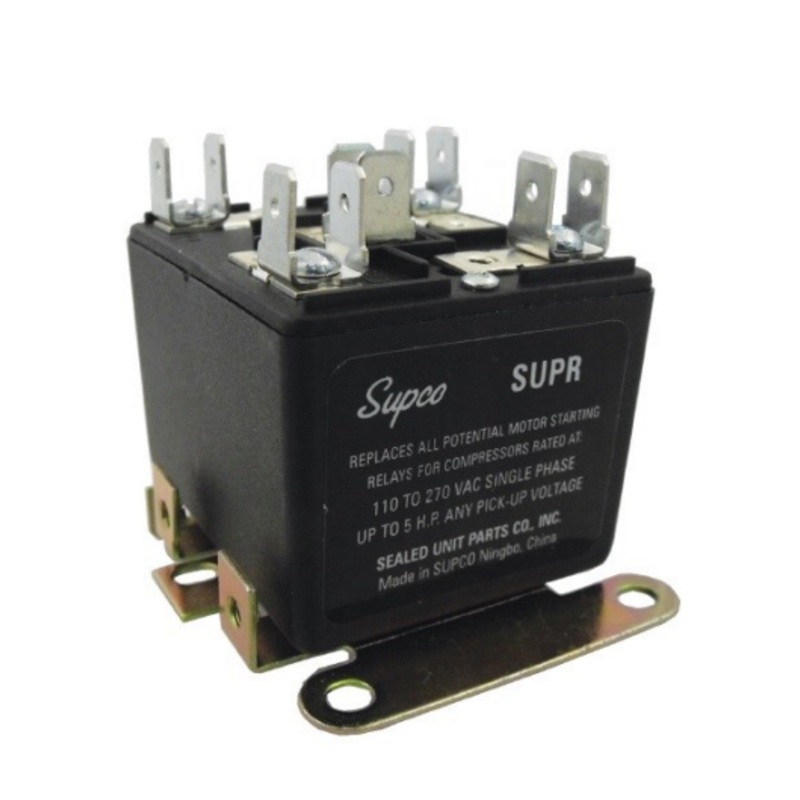

The SUPCO SUPR is a universal potential relay (EPR technology) designed for single-phase, capacitor-start compressor motors. It helps licensed HVAC/R techs, apprentices, and contractors get fast, consistent starts with a compact, non-positional unit fair dinkum, its built for quick installs and fewer headaches.

Key Features & Trade Benefits

• EPR technology, 110270 VAC single-phase precise, reliable pick-up across common service voltages, so you can standardise van stock.
• Start time function: 1.01.5 s protects the start winding if the motor doesnt kick, reducing call-backs.
• Up to 5 hp (3.7 kW) covers most light commercial and residential compressors you see week-to-week.
• Normally-closed 30 A contacts trade-tough contact rating for dependable switching.
• Non-positional mounting fits tight spaces and awkward panels without dramas.
• Screw or push-on terminals + adapters included faster retrofits and cleaner changeovers.
• Wire-to-wire replacement for most potential relays simplify parts selection across mixed fleets.

Why This Product Matters

On a steamy Brisbane arvo, a split condenser kept tripping on start. Swapped in the SUPR, set it up wire-to-wire, and the compressor came back to life in seconds no worries. The universal voltage window (110270 VAC), time-out protection (1.01.5 s), and non-positional mounting mean less mucking around and more first-time fixes. For techs juggling mixed brands and models, a true universal potential relay is a bloody good way to standardise stock and reduce repeat visits. For broader gear browsing, see our HVAC supply catalogue.

Pro Tip

Before swap-out, photograph the existing relay wiring and label the leads. After fitting the SUPR, verify start/line connections and allow the safety time-out to complete before re-testing. This simple habit avoids crossed leads and makes on-site troubleshooting a breeze. For electrical safety on site, follow recognised Australian WHS guidance.

Compatibility & System Info

• Application: single-phase, capacitor-type motors on HVAC/R compressors
• Operating voltage: 110270 VAC, single-phase
• Motor rating: up to 5 hp (3.7 kW)
• Function: time function relay, 1.01.5 s safety time-out
• Replacement type: wire-to-wire replacement for most potential motor starting relays

Local SEO Reference

Whether youre commissioning in humid Brisbane or battling summer rooftop heat in Perth, fast restarts and solid start-winding protection help keep systems online shell be right when the relays sorted.

Whats Included

• SUPCO SUPR universal potential relay
• Universal mounting bracket (snap-off sections for easy fit)
• Terminal adapters (screw-to-push-on)
• Manufacturer instructions

Specifications

Warranty & Returns

Backed by HVAC Shops standard warranty and returns policy for parts installed by qualified personnel. For safe installation and testing, work to Australian WHS guidance before energising.

FAQs

Will the SUPR replace the potential relay in my older single-phase condensing unit?
In most cases, yes its designed as a wire-to-wire replacement across 110270 VAC, up to 5 hp. Always match wiring to the manufacturer diagram and verify current/voltage conditions.

Does it need a specific mounting orientation?
No SUPR is non-positional, which is handy in tight panels or rooftop packages.

What if the compressor doesnt start within the time window?
The relay opens after ~1.01.5 s to protect the start winding; diagnose underlying supply or mechanical issues before re-attempting.

Hard-start kit or potential relay?
Hard-start kits add extra starting torque. A universal potential relay like SUPR controls the start winding cleanly on capacitor-type motors. If youre troubleshooting chronic low-voltage starts, a hard-start kit may be the better call see the related products below.
