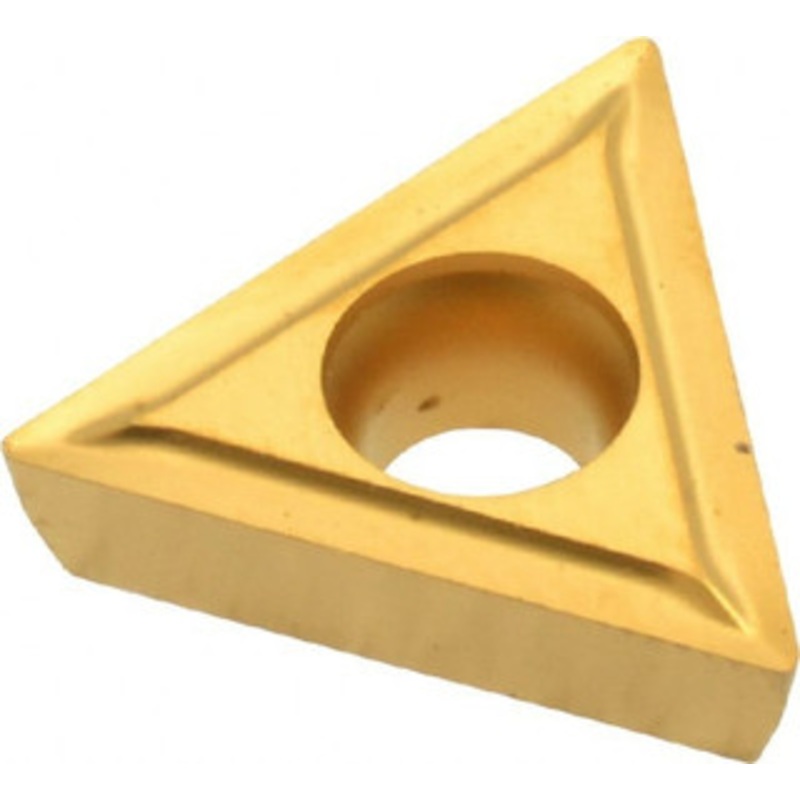

Value Collection TPMT32.51 TCN55 Carbide Turning Insert TiN Finish, 3/8 Inscribed Circle, 1/64 Corner Radius, 60 Triangle ICP65105L – 78233954

Value Collection TPMT32.51 TCN55 Carbide Turning Insert TiN Finish, 3/8 Inscribed Circle, 1/64 Corner Radius, 60 Triangle ICP65105L – 78233954

$23.12 $38.53
Review

Value Collection TPMT32.51 TCN55 Carbide Turning Insert TiN Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 60 TriangleManufacturer Part #: ICP65105LS/N: 78233954UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:ANSI Insert C

SKU: 7.8233954E7 Category:
Description Reviews (0)

Value Collection TPMT32.51 TCN55 Carbide Turning Insert TiN Finish, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 60 Triangle

Manufacturer Part #: ICP65105L

S/N: 78233954

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

ANSI Insert Code TPMT32.51 ISO Insert Code TPMT16T304 Relief Angle 11 Insert Style TPMT Corner Radius (Inch) 1/64 Corner Radius (Decimal Inch) 0.0156 Included Angle 60 Manufacturer Grade TCN55 Coating/Finish TiN Insert Thickness (Inch) 5/32 Insert Thickness (Decimal Inch) 0.1563 Inscribed Circle (Inch) 3/8 Inscribed Circle (Decimal Inch) 0.3750 Insert Material Carbide Insert Shape T – Triangle Side Clearance Positive Insert Shape Code T Hole Diameter (Decimal Inch) 0.1730 Insert Holding Method Screw Clearance Code P Tolerance Code M Primary Workpiece Material Code M, P Material Grade C5 Chip Breaker T ANSI Size Code 32.51 ISO Size Code 16T304 UNSPSC Code 23242105 Insert Size Code 32.51
