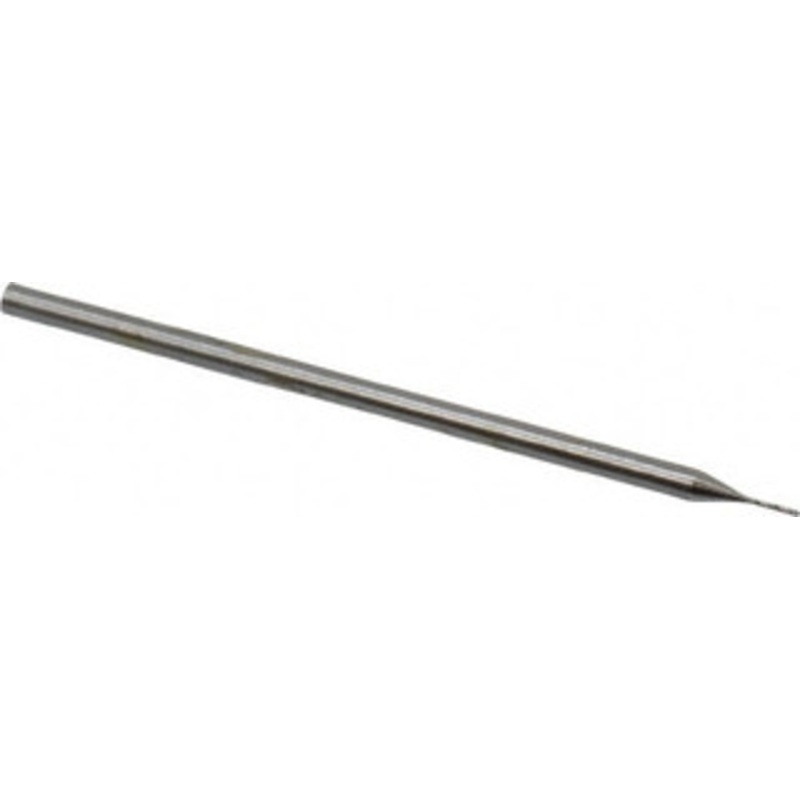

Walter Titex 0.18mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 1.1mm Flute Length, 1mm Shank Diam, Series A3143 5062852 – 01480185

Walter Titex 0.18mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 1.1mm Flute Length, 1mm Shank Diam, Series A3143 5062852 – 01480185

$15.66 $26.10
Review

Walter Titex 0.18mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 1.1mm Flute Length, 1mm Shank Diam, Series A3143Manufacturer Part #: 5062852S/N: 01480185UNSPSC: 23241600(Minimum Order Quantity=10, Package Quantity=1)(Please order in multiples of 10)Specif

SKU: 1480185.0 Category:
Description Reviews (0)

Walter Titex 0.18mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 1.1mm Flute Length, 1mm Shank Diam, Series A3143

Manufacturer Part #: 5062852

S/N: 01480185

UNSPSC: 23241600

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (Wire) #94 Drill Bit Size (Decimal Inch) 0.0071 Tool Material Cobalt Flute Length (mm) 1.10 Coating/Finish Bright/Uncoated Coolant Through No Drill Point Angle 118 Cutting Direction Right Hand Maximum Drilling Depth (mm) 0.80 Series A3143 Overall Length (mm) 25.00mm Flute Type Spiral Shank Type Straight-Cylindrical Point Type Standard Tool Application Blind Hole, Stack Drilling, Through Hole Drilling Web Thinning Web-Thinned Web Configuration Tapered Drill Bit Diameter Tolerance +0.000 to -0.004 mm Primary Workpiece Material Titanium Alloy Primary Workpiece Material Code K, N, P, S Secondary Workpiece Material Glass, Graphite Secondary Workpiece Material Code M, O Standards DIN 1899 Shank Diameter (mm) 1.00mm Flute By Diameter Ratio 5xD Material Grade M35 Spiral Type Regular Specification Number DIN 1899 UNSPSC Code 23241600
