Sale!

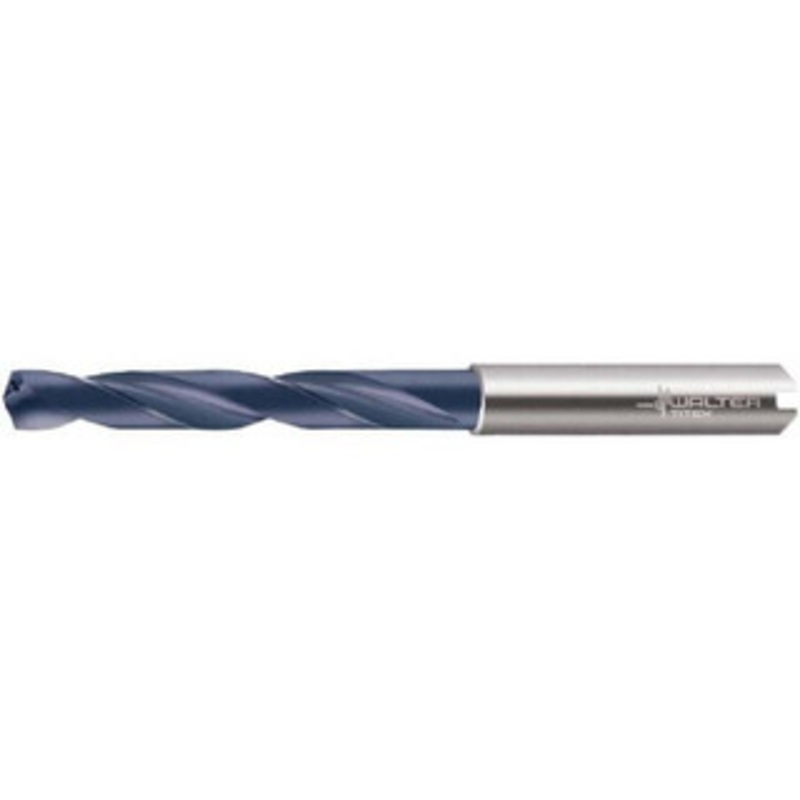

Walter Titex 0.268 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 3.5827 OAL, Special Type Point 6618345 – 36149516

Walter Titex 0.268 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 3.5827 OAL, Special Type Point 6618345 – 36149516

$67.85 $135.70
Review

Walter Titex 0.268" 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 3.5827" OAL, Special Type PointManufacturer Part #: 6618345S/N: 36149516UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specif

SKU: 3.6149516E7 Category:
Description Reviews (0)

Walter Titex 0.268″ 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 3.5827″ OAL, Special Type Point

Manufacturer Part #: 6618345

S/N: 36149516

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Decimal Inch) 0.2680 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type Proprietary Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel, Superalloys & Titanium Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating TiAlN Primary Workpiece Material Code K, N, P, S Shank Diameter (Decimal Inch) 0.3150 Overall Length (mm) 91.00 Overall Length (Decimal Inch) 3.5827 Spiral Type Regular Flute Length (mm) 34.04 Flute Length (Decimal Inch) 1.3400 Series DC150 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 5xD Shank Diameter (mm) 8.00 Maximum Drilling Depth (Decimal Inch) 1.3400 Maximum Drilling Depth (mm) 34.04 Shank Length (mm) 36.00 Shank Length (Decimal Inch) 1.4170 Drill Point Length (mm) 1.24 Drill Point Length (Decimal Inch) 0.0487 Drill Bit Diameter Tolerance m7 Shank Type Whistle Notch Standards ANSI, ISO Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 Specification Designation ISO UNSPSC Code 23241634
