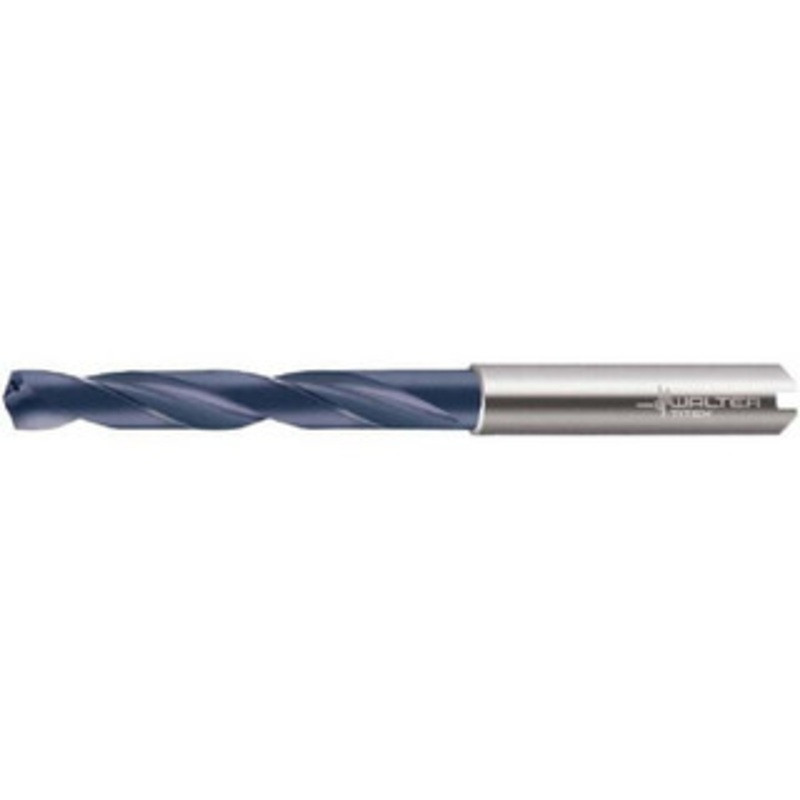

Walter Titex 0.344 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 4.0551 OAL, Special Type Point 6618370 – 36149268

Walter Titex 0.344 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 4.0551 OAL, Special Type Point 6618370 – 36149268

$78.94 $157.87
Review

Walter Titex 0.344" 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 4.0551" OAL, Special Type PointManufacturer Part #: 6618370S/N: 36149268UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specif

SKU: 3.6149268E7 Category:
Description Reviews (0)

Walter Titex 0.344″ 140 Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Whistle Notch Shank, 4.0551″ OAL, Special Type Point

Manufacturer Part #: 6618370

S/N: 36149268

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Decimal Inch) 0.3440 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Flute Type Spiral Cutting Direction Right Hand Point Type Proprietary Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel, Superalloys & Titanium Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating TiAlN Primary Workpiece Material Code K, N, P, S Shank Diameter (Decimal Inch) 0.3940 Overall Length (mm) 103.00 Overall Length (Decimal Inch) 4.0551 Spiral Type Regular Flute Length (mm) 43.69 Flute Length (Decimal Inch) 1.7200 Series DC150 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 5xD Shank Diameter (mm) 10.01 Maximum Drilling Depth (Decimal Inch) 1.7200 Maximum Drilling Depth (mm) 43.69 Shank Length (mm) 40.00 Shank Length (Decimal Inch) 1.5750 Drill Point Length (mm) 1.59 Drill Point Length (Decimal Inch) 0.0626 Drill Bit Diameter Tolerance m7 Shank Type Whistle Notch Standards ANSI, ISO Drill Bit Size Range (Decimal Inch) 0.3000 – 0.3500 Specification Designation ISO UNSPSC Code 23241634
