Walter Titex 0.39mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 3mm Flute Length, 1mm Shank Diam, Series A3143 5062873 – 01480391

Walter Titex 0.39mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 3mm Flute Length, 1mm Shank Diam, Series A3143 5062873 – 01480391

$11.31 $18.85
Review

Walter Titex 0.39mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 3mm Flute Length, 1mm Shank Diam, Series A3143Manufacturer Part #: 5062873S/N: 01480391UNSPSC: 23241600(Minimum Order Quantity=10, Package Quantity=1)(Please order in multiples of 10)Specific

SKU: 1480391.0 Category:
Description Reviews (0)

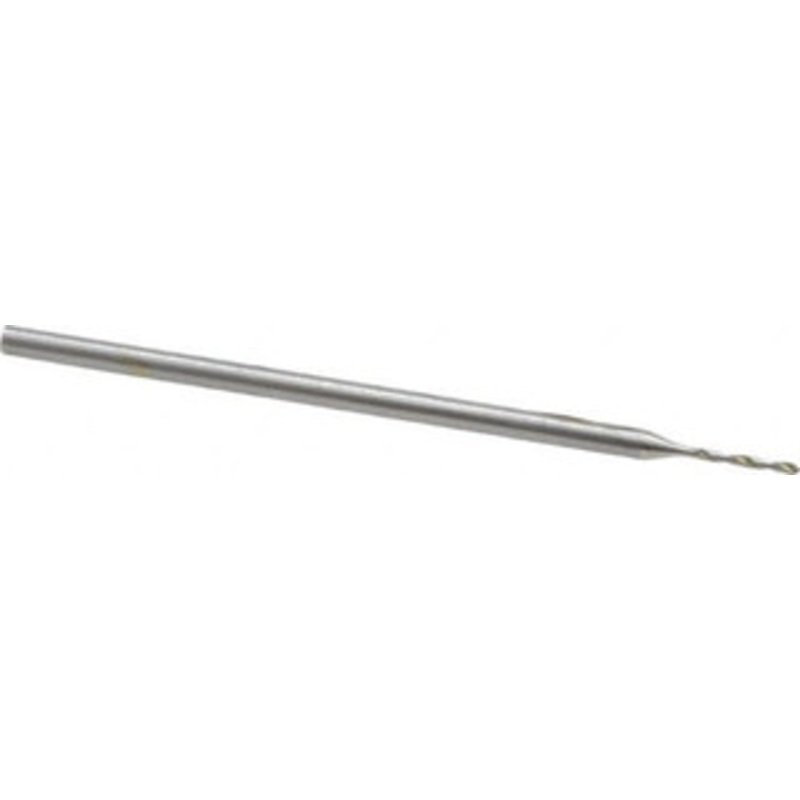

Walter Titex 0.39mm, 118 Point, Cobalt Micro Drill Bit 25mm OAL, 3mm Flute Length, 1mm Shank Diam, Series A3143

Manufacturer Part #: 5062873

S/N: 01480391

UNSPSC: 23241600

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (Decimal Inch) 0.0154 Tool Material Cobalt Flute Length (mm) 3.00 Coating/Finish Bright/Uncoated Coolant Through No Drill Point Angle 118 Cutting Direction Right Hand Maximum Drilling Depth (mm) 2.20 Maximum Drilling Depth (Decimal Inch) 0.1000 Series A3143 Overall Length (mm) 25.00mm Flute Type Spiral Shank Type Straight-Cylindrical Point Type Standard Tool Application Blind Hole, Stack Drilling, Through Hole Drilling Web Thinning Web-Thinned Web Configuration Tapered Drill Bit Diameter Tolerance +0.000 to -0.004 mm Primary Workpiece Material Titanium Alloy Primary Workpiece Material Code K, N, P, S Secondary Workpiece Material Glass, Graphite Secondary Workpiece Material Code M, O Standards DIN 1899 Shank Diameter (mm) 1.00mm Flute By Diameter Ratio 5xD Material Grade M35 Spiral Type Regular Specification Number DIN 1899 UNSPSC Code 23241600
