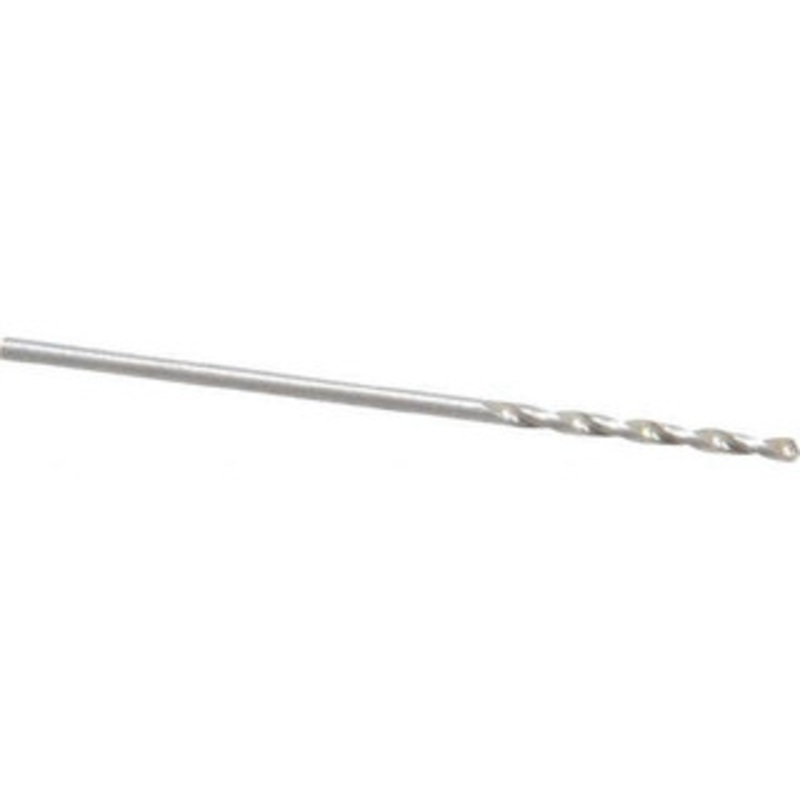

Walter Titex 1.05mm 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/32 OAL, Standard Point 5058467 – 77849420

Walter Titex 1.05mm 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/32 OAL, Standard Point 5058467 – 77849420

$3.21 $5.35
Review

Walter Titex 1.05mm 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/32" OAL, Standard PointManufacturer Part #: 5058467S/N: 77849420UNSPSC: 23241634(Minimum Order Quantity=10, Package Quantity=1)(Please or

SKU: 7.784942E7 Category:
Description Reviews (0)

Walter Titex 1.05mm 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 1-11/32″ OAL, Standard Point

Manufacturer Part #: 5058467

S/N: 77849420

UNSPSC: 23241634

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (mm) 1.05 Drill Bit Size (Decimal Inch) 0.0413 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 118 Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Cast Iron, Steel Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Oxide Flute Length (Inch) 15/32 Primary Workpiece Material Code K, P Shank Diameter (Decimal Inch) 0.0413 Overall Length (mm) 34.00 Overall Length (Inch) 1-11/32 Spiral Type Regular Flute Length (mm) 12.00 Series A1211 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 0.3940 Maximum Drilling Depth (mm) 10.00 Shank Length (mm) 22.00 Shank Length (Decimal Inch) 0.8670 Drill Point Length (mm) 0.31 Drill Point Length (Decimal Inch) 0.0124 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.0000 – 0.0500 Drill Bit Size Range (mm) 0.00 – 2.00 Specification Designation BS, DIN UNSPSC Code 23241634
