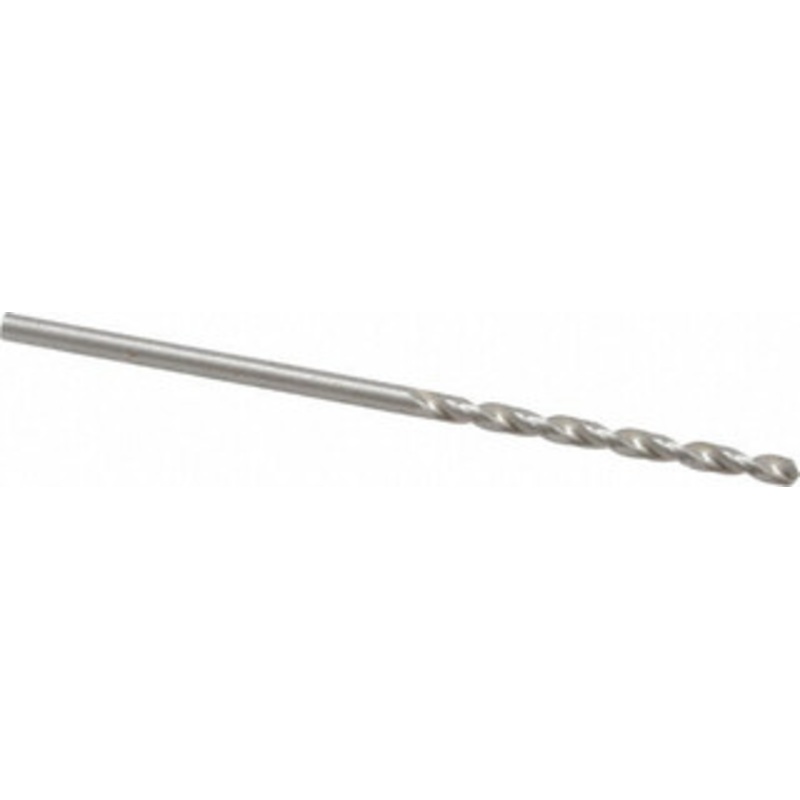

Walter Titex 1.6mm 130 Cobalt Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-11/16 OAL, Split Point 5060515 – 01501188

Walter Titex 1.6mm 130 Cobalt Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-11/16 OAL, Split Point 5060515 – 01501188

$7.65 $12.75
Review

Walter Titex 1.6mm 130 Cobalt Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-11/16" OAL, Split PointManufacturer Part #: 5060515S/N: 01501188UNSPSC: 23241634(Minimum Order Quantity=10, Package Quantity=1)(Please order in mul

SKU: 1501188.0 Category:
Description Reviews (0)

Walter Titex 1.6mm 130 Cobalt Jobber Drill Bright Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 1-11/16″ OAL, Split Point

Manufacturer Part #: 5060515

S/N: 01501188

UNSPSC: 23241634

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (mm) 1.60 Drill Bit Size (Decimal Inch) 0.0630 Drill Bit Material Cobalt Drill Point Angle (Degrees) 130 Flute Type Parabolic Cutting Direction Right Hand Point Type Split Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel, Superalloys & Titanium Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Bright/Uncoated Flute Length (Inch) 25/32 Primary Workpiece Material Code K, M, N, P, S Shank Diameter (Decimal Inch) 0.0630 Overall Length (Inch) 1-11/16 Series A1247 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 0.6690 Maximum Drilling Depth (mm) 17.00 Shank Length (mm) 23.00 Shank Length (Decimal Inch) 0.9060 Drill Point Length (mm) 0.37 Drill Point Length (Decimal Inch) 0.0147 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.0500 – 0.1000 Drill Bit Size Range (mm) 0.00 – 2.00 Specification Designation BS, DIN UNSPSC Code 23241634
