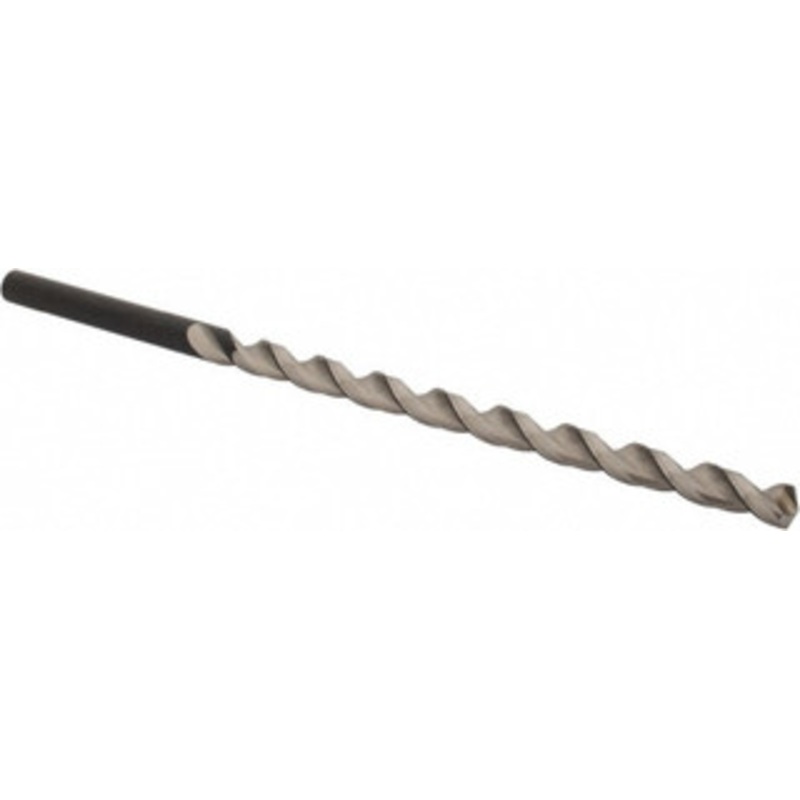

Walter Titex 10.5mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 185mm Flute Length, 265mm OAL, 10.5mm Shank Diam, Series A1622 5062543 – 51802973

Walter Titex 10.5mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 185mm Flute Length, 265mm OAL, 10.5mm Shank Diam, Series A1622 5062543 – 51802973

$70.22 $140.43
Review

Walter Titex 10.5mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 185mm Flute Length, 265mm OAL, 10.5mm Shank Diam, Series A1622Manufacturer Part #: 5062543S/N: 51802973UNSPSC: 23241637(Minimum Order Quantity=1, Package Quantity=1)Spec

SKU: 5.1802973E7 Category:
Description Reviews (0)

Walter Titex 10.5mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 185mm Flute Length, 265mm OAL, 10.5mm Shank Diam, Series A1622

Manufacturer Part #: 5062543

S/N: 51802973

UNSPSC: 23241637

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 10.50 Overall Length (mm) 265.00 Tool Material High Speed Steel Coating/Finish Uncoated Coolant Through No Flute Type Parabolic Shank Type Straight-Cylindrical Drill Point Angle 130 Flute Length (mm) 185.00 Point Type UFL Series A1622 Cutting Direction Right Hand Tool Application Blind Hole, Stack Drilling Drill Bit Diameter Tolerance +0.000 to -0.027 mm, +0.00000 to -0.00106 in Number Of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Primary Workpiece Material Code K, N, P Secondary Workpiece Material Cobalt, Iron, Nickel, Titanium Alloy Secondary Workpiece Material Code M, O, S Standards ANSI, DIN 1869-I, ISO Drill Bit Grade High Performance Drill Bit Size (Decimal Inch) 0.4134 Shank Diameter (mm) 10.50 Shank Length (Decimal Inch) 3.1500 Shank Length (mm) 80.00 Flute Length (Decimal Inch) 7.2835 Flute By Diameter Ratio 16xD Maximum Drilling Depth (Decimal Inch) 6.6540 Maximum Drilling Depth (mm) 169.00 Material Grade M2 Specification Designation DIN Specification Number DIN 1869-I
