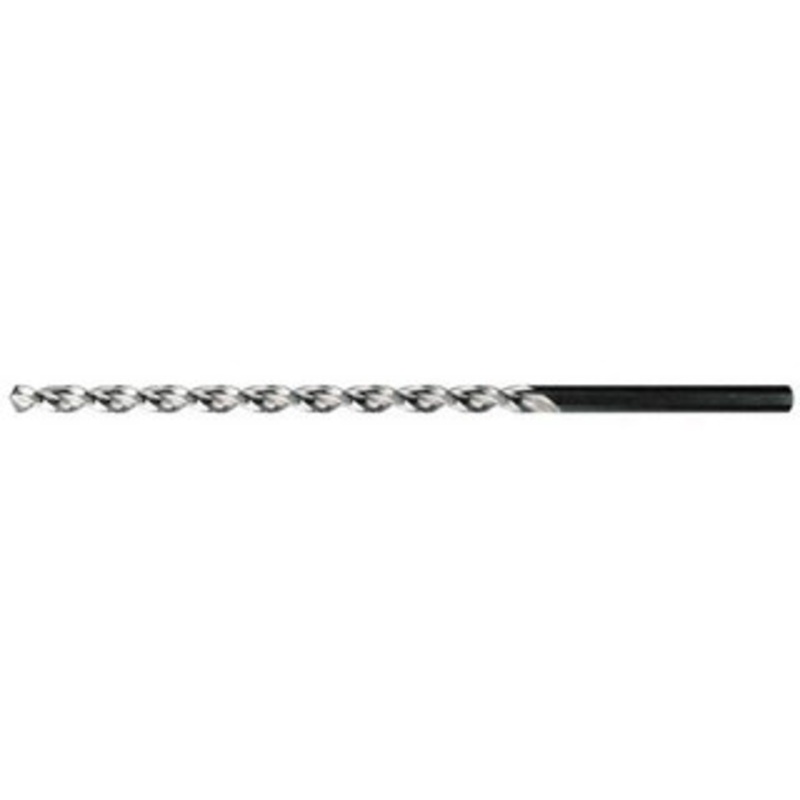

Walter Titex 11mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 195mm Flute Length, 280mm OAL, 11mm Shank Diam, Series A1622 5062544 – 51802981

Walter Titex 11mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 195mm Flute Length, 280mm OAL, 11mm Shank Diam, Series A1622 5062544 – 51802981

$77.77 $155.53
Review

Walter Titex 11mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 195mm Flute Length, 280mm OAL, 11mm Shank Diam, Series A1622Manufacturer Part #: 5062544S/N: 51802981UNSPSC: 23241637(Minimum Order Quantity=1, Package Quantity=1)Specific

SKU: 5.1802981E7 Category:
Description Reviews (0)

Walter Titex 11mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 195mm Flute Length, 280mm OAL, 11mm Shank Diam, Series A1622

Manufacturer Part #: 5062544

S/N: 51802981

UNSPSC: 23241637

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 11.00 Overall Length (mm) 280.00 Tool Material High-Speed Steel Coating/Finish Bright/Uncoated Coolant Through No Flute Type Parabolic Shank Type Straight-Cylindrical Drill Point Angle 130 Flute Length (mm) 195.00 Point Type UFL Series A1622 Cutting Direction Right Hand Tool Application Blind Hole, Stack Drilling Drill Bit Diameter Tolerance +0.000 to -0.027 mm, +0.00000 to -0.00106 in Number Of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Primary Workpiece Material Code K, N, P Secondary Workpiece Material Cobalt, Iron, Nickel, Titanium Alloy Secondary Workpiece Material Code M, O, S Standards ANSI, DIN 1869-I, ISO Drill Bit Grade High Performance Drill Bit Size (Decimal Inch) 0.4331 Shank Diameter (mm) 11.00 Shank Length (Decimal Inch) 3.3470 Shank Length (mm) 85.00 Flute Length (Decimal Inch) 7.6770 Flute By Diameter Ratio 16xD Maximum Drilling Depth (Decimal Inch) 6.9690 Maximum Drilling Depth (mm) 177.00 Material Grade M2 Specification Designation DIN Specification Number DIN 1869-I UNSPSC Code 23241637
