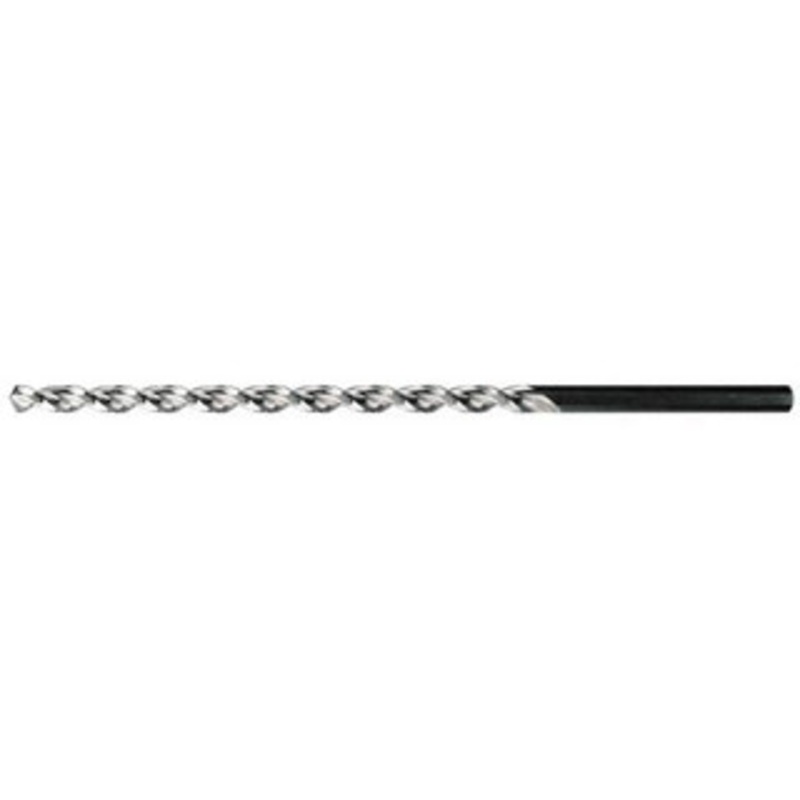

Walter Titex 2.8mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 100mm Flute Length, 150mm OAL, 2.8mm Shank Diam, Series A1622 5062563 – 51803096

Walter Titex 2.8mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 100mm Flute Length, 150mm OAL, 2.8mm Shank Diam, Series A1622 5062563 – 51803096

$22.52 $37.53
Review

Walter Titex 2.8mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 100mm Flute Length, 150mm OAL, 2.8mm Shank Diam, Series A1622Manufacturer Part #: 5062563S/N: 51803096UNSPSC: 23241637(Minimum Order Quantity=1, Package Quantity=1)Specif

SKU: 5.1803096E7 Category:
Description Reviews (0)

Walter Titex 2.8mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 100mm Flute Length, 150mm OAL, 2.8mm Shank Diam, Series A1622

Manufacturer Part #: 5062563

S/N: 51803096

UNSPSC: 23241637

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 2.80 Overall Length (mm) 150.00 Tool Material High Speed Steel Coating/Finish Uncoated Coolant Through No Flute Type Parabolic Shank Type Straight-Cylindrical Drill Point Angle 130 Flute Length (mm) 100.00 Point Type UFL Series A1622 Cutting Direction Right Hand Tool Application Blind Hole, Stack Drilling Drill Bit Diameter Tolerance -0.00055 to 0.00000 in, -0.014 to 0.000 mm Number Of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Primary Workpiece Material Code K, N, P Secondary Workpiece Material Cobalt, Iron, Nickel, Titanium Alloy Secondary Workpiece Material Code M, O, S Standards ANSI, DIN 1869-I, ISO Drill Bit Grade High Performance Drill Bit Size (Decimal Inch) 0.1102 Shank Diameter (mm) 2.80 Shank Length (Decimal Inch) 1.9690 Shank Length (mm) 50.00 Flute Length (Decimal Inch) 3.9370 Flute By Diameter Ratio 16xD Maximum Drilling Depth (Decimal Inch) 3.7400 Maximum Drilling Depth (mm) 95.00 Material Grade M2 Specification Designation DIN Specification Number DIN 1869-I
