Sale!

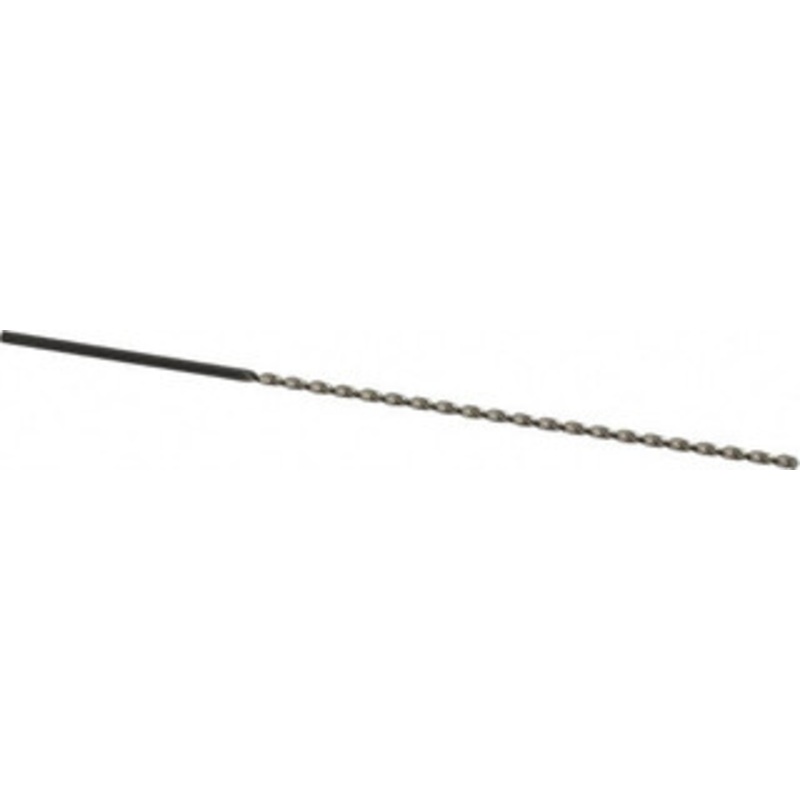

Walter Titex 3/32 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 3-47/64 Flute Length, 5-1/2 OAL, 3/32 Shank Diam, Series A1622 5062581 – 51803211

Walter Titex 3/32 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 3-47/64 Flute Length, 5-1/2 OAL, 3/32 Shank Diam, Series A1622 5062581 – 51803211

$22.39 $37.32
Review

Walter Titex 3/32" 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 3-47/64" Flute Length, 5-1/2" OAL, 3/32" Shank Diam, Series A1622Manufacturer Part #: 5062581S/N: 51803211UNSPSC: 23241637(Minimum Order Quantity=1, Package Quantity=1)Sp

SKU: 5.1803211E7 Category:
Description Reviews (0)

Walter Titex 3/32″ 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 3-47/64″ Flute Length, 5-1/2″ OAL, 3/32″ Shank Diam, Series A1622

Manufacturer Part #: 5062581

S/N: 51803211

UNSPSC: 23241637

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Overall Length (Inch) 5-1/2 Tool Material High Speed Steel Coating/Finish Uncoated Coolant Through No Flute Type Parabolic Shank Type Straight-Cylindrical Drill Point Angle 130 Flute Length (Inch) 3-47/64 Point Type UFL Series A1622 Cutting Direction Right Hand Tool Application Blind Hole, Stack Drilling Drill Bit Diameter Tolerance -0.00071 to 0.00000 in, -0.018 to 0.000 mm Number Of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Primary Workpiece Material Code K, N, P Secondary Workpiece Material Cobalt, Iron, Nickel, Titanium Alloy Secondary Workpiece Material Code M, O, S Standards ANSI, DIN 1869-I, ISO Drill Bit Size (Decimal Inch) 0.0938 Shank Diameter (Inch) 3/32 Shank Length (Decimal Inch) 1.7720 Shank Length (mm) 45.00 Flute By Diameter Ratio 16xD Maximum Drilling Depth (Decimal Inch) 3.5830 Maximum Drilling Depth (mm) 91.00 Material Grade M2 Specification Designation DIN Specification Number DIN 1869-I
