Walter Titex 31/64 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 8-1/16 Flute Length, 11-5/8 OAL, Series A1622 5062583 – 01468313

Walter Titex 31/64 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 8-1/16 Flute Length, 11-5/8 OAL, Series A1622 5062583 – 01468313

$108.22 $216.43
Review

Walter Titex 31/64" 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 8-1/16" Flute Length, 11-5/8" OAL, Series A1622Manufacturer Part #: 5062583S/N: 01468313UNSPSC: 23241637(Minimum Order Quantity=1, Package Quantity=1)Specifications:Over

SKU: 1468313.0 Category:
Description Reviews (0)

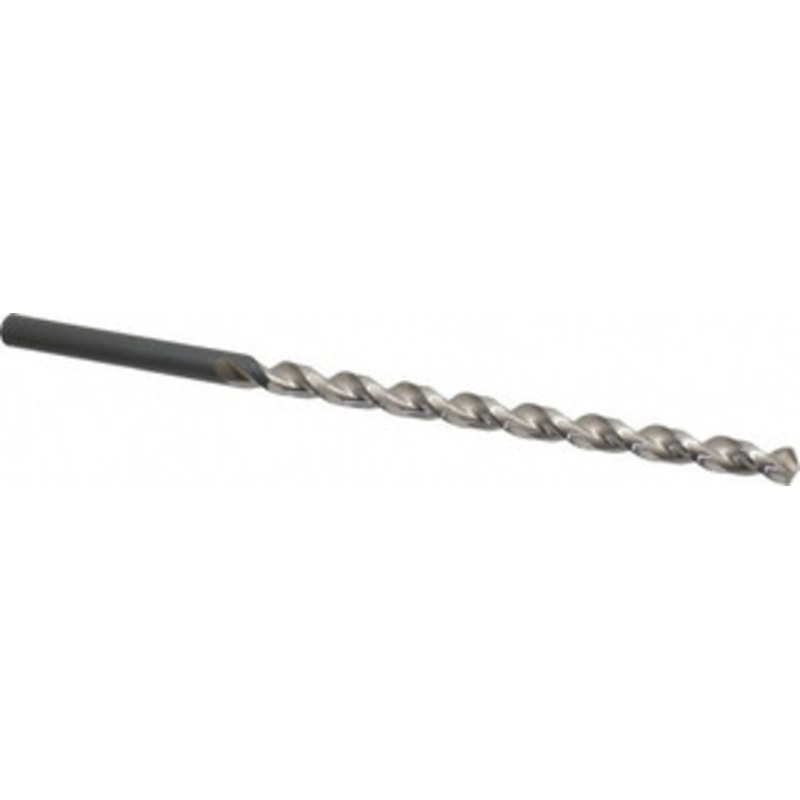

Walter Titex 31/64″ 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 8-1/16″ Flute Length, 11-5/8″ OAL, Series A1622

Manufacturer Part #: 5062583

S/N: 01468313

UNSPSC: 23241637

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Overall Length (Inch) 11-5/8 Tool Material High Speed Steel Coating/Finish Uncoated Coolant Through No Flute Type Parabolic Shank Type Straight-Cylindrical Drill Point Angle 130 Flute Length (Inch) 8-1/16 Point Type Standard Series A1622 Cutting Direction Right Hand Tool Application Blind Hole, Stack Drilling Drill Bit Diameter Tolerance +0.000 to -0.027 mm, +0.00000 to -0.00106 in Number Of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Primary Workpiece Material Code K, N, P Secondary Workpiece Material Cobalt, Iron, Nickel, Titanium Alloy Secondary Workpiece Material Code M, O, S Standards ANSI, DIN 1869-I, ISO Drill Bit Grade High Performance Drill Bit Size (Decimal Inch) 0.4844 Shank Diameter (Decimal Inch) 0.4840 Shank Diameter (mm) 12.30 Shank Length (Decimal Inch) 3.5430 Shank Length (mm) 90.00 Flute By Diameter Ratio 16xD Maximum Drilling Depth (Decimal Inch) 7.5200 Maximum Drilling Depth (mm) 191.00 Specification Designation DIN Specification Number DIN 1869-I
