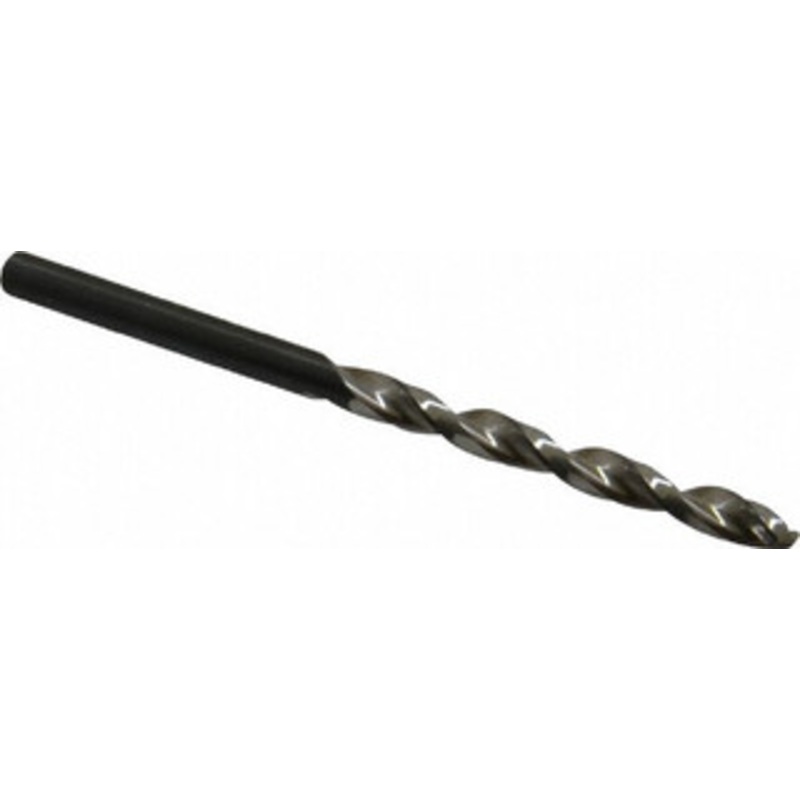

Walter Titex 4.2mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16 OAL, Split Point 5060584 – 01501964

Walter Titex 4.2mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16 OAL, Split Point 5060584 – 01501964

$9.67 $16.12
Review

Walter Titex 4.2mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16" OAL, Split PointManufacturer Part #: 5060584S/N: 01501964UNSPSC: 23241634(Minimum Order Quantity=10, Package Quantity=1)(Please order in mult

SKU: 1501964.0 Category:
Description Reviews (0)

Walter Titex 4.2mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16″ OAL, Split Point

Manufacturer Part #: 5060584

S/N: 01501964

UNSPSC: 23241634

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (mm) 4.20 Drill Bit Size (Decimal Inch) 0.1654 Drill Bit Material Cobalt Drill Point Angle (Degrees) 130 Flute Type Parabolic Cutting Direction Right Hand Point Type Split Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel, Superalloys & Titanium Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Oxide Flute Length (Inch) 1-11/16 Primary Workpiece Material Code K, M, N, P, S Shank Diameter (Decimal Inch) 0.1654 Overall Length (Inch) 2-15/16 Series A1247 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 1.4170 Maximum Drilling Depth (mm) 36.00 Shank Length (mm) 32.00 Shank Length (Decimal Inch) 1.2600 Drill Point Length (mm) 0.97 Drill Point Length (Decimal Inch) 0.0386 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000 Drill Bit Size Range (mm) 4.00 – 5.00 Specification Designation BS, DIN UNSPSC Code 23241634
