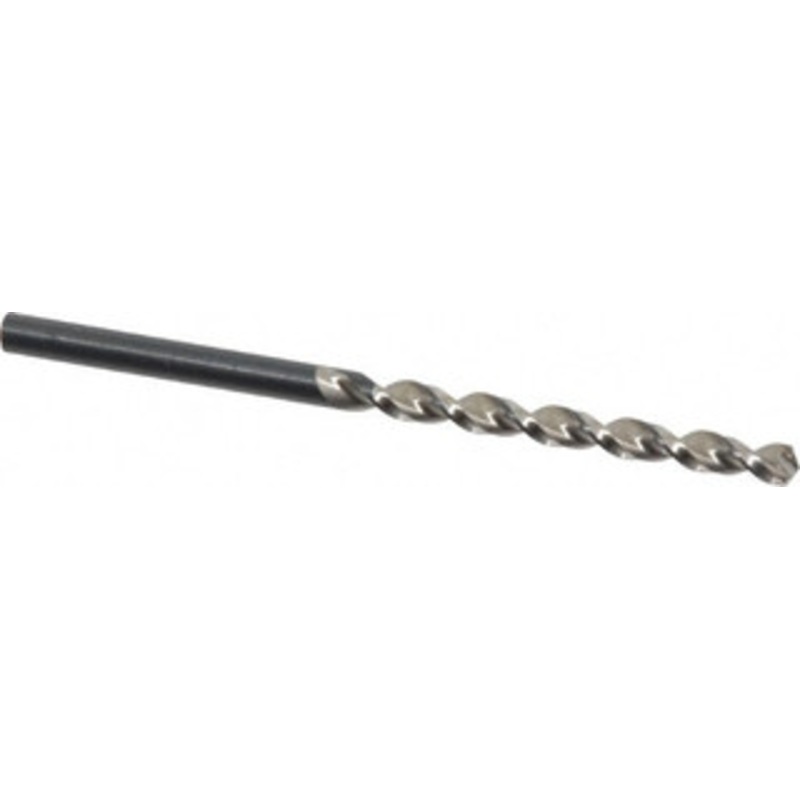

Walter Titex 5/32 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16 OAL, Standard Point 5059503 – 01462100

Walter Titex 5/32 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16 OAL, Standard Point 5059503 – 01462100

$8.52 $14.20
Review

Walter Titex 5/32" 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16" OAL, Standard PointManufacturer Part #: 5059503S/N: 01462100UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifica

SKU: 1462100.0 Category:
Description Reviews (0)

Walter Titex 5/32″ 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 2-15/16″ OAL, Standard Point

Manufacturer Part #: 5059503

S/N: 01462100

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 5/32 Drill Bit Size (Decimal Inch) 0.1562 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 130 Flute Type Parabolic Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Coolant Through No Drill Bit Finish/Coating Oxide Flute Length (Inch) 1-11/16 Primary Workpiece Material Code K, N, P Overall Length (Inch) 2-15/16 Series A1222 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Shank Diameter (Inch) 5/32 Maximum Drilling Depth (Decimal Inch) 1.4170 Maximum Drilling Depth (mm) 36.00 Shank Length (mm) 32.00 Shank Length (Decimal Inch) 1.2600 Drill Point Length (mm) 0.92 Drill Point Length (Decimal Inch) 0.0364 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.1500 – 0.2000 Specification Designation BS, DIN UNSPSC Code 23241634
