Sale!

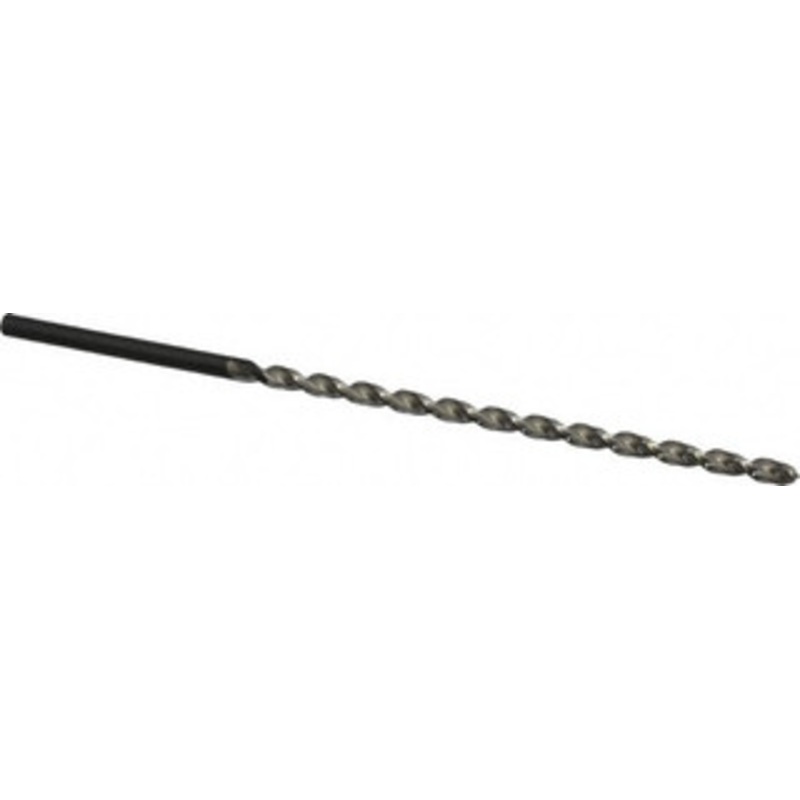

Walter Titex 6mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 140mm Flute Length, 205mm OAL, 6mm Shank Diam, Series A1622 5062606 – 51803427

Walter Titex 6mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 140mm Flute Length, 205mm OAL, 6mm Shank Diam, Series A1622 5062606 – 51803427

$26.31 $52.62
Review

Walter Titex 6mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 140mm Flute Length, 205mm OAL, 6mm Shank Diam, Series A1622Manufacturer Part #: 5062606S/N: 51803427UNSPSC: 23241637(Minimum Order Quantity=1, Package Quantity=1)Specificat

SKU: 5.1803427E7 Category:
Description Reviews (0)

Walter Titex 6mm 130 2-Flute High Speed Steel Extra Length Drill Bit Bright Finish, 140mm Flute Length, 205mm OAL, 6mm Shank Diam, Series A1622

Manufacturer Part #: 5062606

S/N: 51803427

UNSPSC: 23241637

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (mm) 6.00 Overall Length (mm) 205.00 Tool Material High Speed Steel Coating/Finish Uncoated Coolant Through No Flute Type Parabolic Shank Type Straight-Cylindrical Drill Point Angle 130 Flute Length (mm) 140.00 Point Type UFL Series A1622 Cutting Direction Right Hand Tool Application Blind Hole, Stack Drilling Drill Bit Diameter Tolerance -0.00071 to 0.00000 in, -0.018 to 0.000 mm Number Of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Primary Workpiece Material Code K, N, P Secondary Workpiece Material Cobalt, Iron, Nickel, Titanium Alloy Secondary Workpiece Material Code M, O, S Standards ANSI, DIN 1869-I, ISO Drill Bit Grade High Performance Drill Bit Size (Decimal Inch) 0.2362 Shank Diameter (mm) 6.00 Shank Length (Decimal Inch) 2.5590 Shank Length (mm) 65.00 Flute Length (Decimal Inch) 5.5120 Flute By Diameter Ratio 16xD Maximum Drilling Depth (Decimal Inch) 5.1570 Maximum Drilling Depth (mm) 131.00 Material Grade M2 Specification Designation DIN Specification Number DIN 1869-I
