Walter Titex 7/32 140 Solid Carbide Jobber Drill TiNAl Finish, Right Hand Cut, 97mm OAL 6618646 – 38539391

Walter Titex 7/32 140 Solid Carbide Jobber Drill TiNAl Finish, Right Hand Cut, 97mm OAL 6618646 – 38539391

$105.29 $210.58
Review

Walter Titex 7/32" 140 Solid Carbide Jobber Drill TiNAl Finish, Right Hand Cut, 97mm OALManufacturer Part #: 6618646S/N: 38539391UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specifications:Drill Bit Size (Inch)7/32Drill Bit Size (mm)5.56Dr

SKU: 3.8539391E7 Category:
Description Reviews (0)

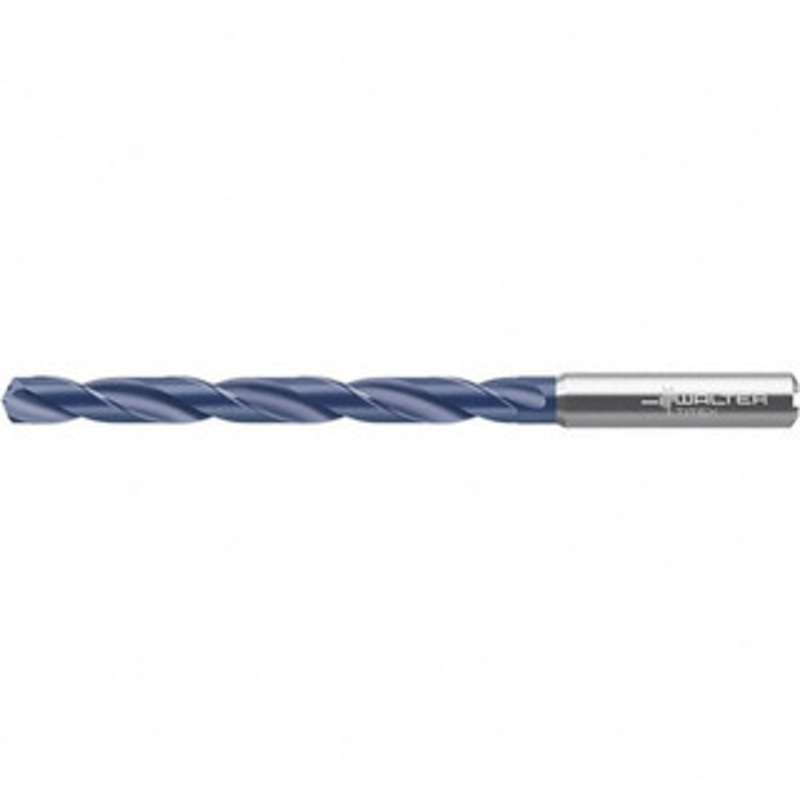

Walter Titex 7/32″ 140 Solid Carbide Jobber Drill TiNAl Finish, Right Hand Cut, 97mm OAL

Manufacturer Part #: 6618646

S/N: 38539391

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Inch) 7/32 Drill Bit Size (mm) 5.56 Drill Bit Size (Decimal Inch) 0.2187 Drill Bit Material Solid Carbide Drill Point Angle (Degrees) 140 Cutting Direction Right Hand Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel, Superalloys & Titanium Coolant Through Yes Number of Flutes 2 Drill Bit Finish/Coating TiNAl Primary Workpiece Material Code K, N, P, S Shank Diameter (Decimal Inch) 0.2360 Overall Length (mm) 97.00 Overall Length (Decimal Inch) 3.8190 Flute Length (mm) 57.00 Flute Length (Decimal Inch) 2.2440 Series DC150-08-A1 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Shank Diameter (mm) 6.00 Maximum Drilling Depth (Decimal Inch) 1.8900 Maximum Drilling Depth (mm) 48.00 Shank Length (mm) 36.00 Shank Length (Decimal Inch) 1.4170 Drill Point Length (mm) 1.01 Drill Point Length (Decimal Inch) 0.0400 Drill Bit Diameter Tolerance m7 Shank Type Straight-Cylindrical Standards ANSI, ISO Drill Bit Grade WJ30TA Drill Bit Size Range (Decimal Inch) 0.2000 – 0.2500 Drill Bit Size Range (mm) 5.00 – 6.00 UNSPSC Code 23241634
