Sale!

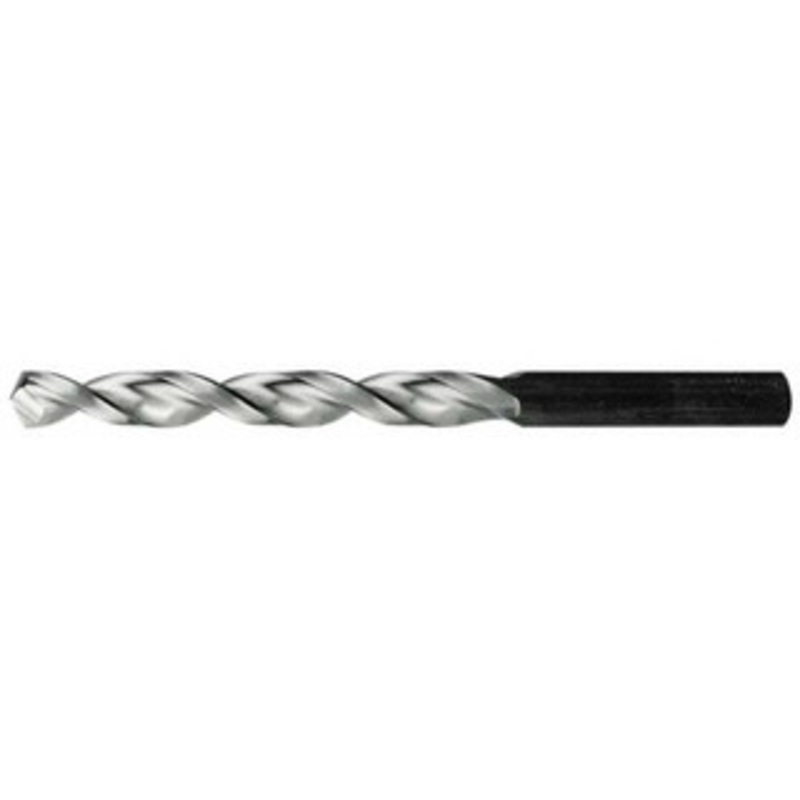

Walter Titex 9.1mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-59/64 OAL, Standard Point 5060639 – 01503432

Walter Titex 9.1mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-59/64 OAL, Standard Point 5060639 – 01503432

$29.89 $59.78
Review

Walter Titex 9.1mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-59/64" OAL, Standard PointManufacturer Part #: 5060639S/N: 01503432UNSPSC: 23241634(Minimum Order Quantity=10, Package Quantity=1)(Please order in m

SKU: 1503432.0 Category:
Description Reviews (0)

Walter Titex 9.1mm 130 Cobalt Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-59/64″ OAL, Standard Point

Manufacturer Part #: 5060639

S/N: 01503432

UNSPSC: 23241634

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (mm) 9.10 Drill Bit Size (Decimal Inch) 0.3583 Drill Bit Material Cobalt Drill Point Angle (Degrees) 130 Flute Type Parabolic Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Stainless Steel, Steel, Superalloys & Titanium Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Oxide Flute Length (Inch) 3-3/16 Primary Workpiece Material Code K, M, N, P, S Shank Diameter (Decimal Inch) 0.3583 Overall Length (mm) 125.00 Overall Length (Inch) 4-59/64 Overall Length (Decimal Inch) 4.9219 Flute Length (mm) 81.00 Flute Length (Decimal Inch) 3.1875 Series A1247 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 2.5980 Maximum Drilling Depth (mm) 66.00 Shank Length (mm) 44.00 Shank Length (Decimal Inch) 1.7320 Drill Point Length (mm) 2.12 Drill Point Length (Decimal Inch) 0.0835 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.3500 – 0.4000 Drill Bit Size Range (mm) 9.00 – 10.00 Specification Designation BS, DIN UNSPSC Code 23241634
