Sale!

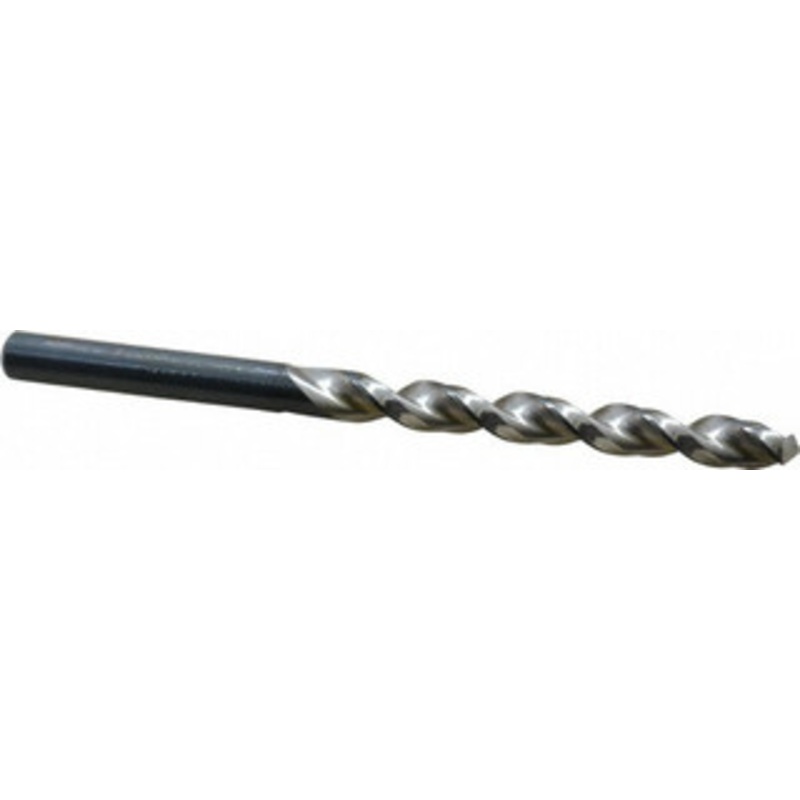

Walter Titex Letter A 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-21/32 OAL, Standard Point 5059323 – 01464015

Walter Titex Letter A 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-21/32 OAL, Standard Point 5059323 – 01464015

$13.53 $22.55
Review

Walter Titex Letter A 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-21/32" OAL, Standard PointManufacturer Part #: 5059323S/N: 01464015UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specif

SKU: 1464015.0 Category:
Description Reviews (0)

Walter Titex Letter A 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-21/32″ OAL, Standard Point

Manufacturer Part #: 5059323

S/N: 01464015

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Letter) A Drill Bit Size (Decimal Inch) 0.2340 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 130 Flute Type Parabolic Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Coolant Through No Drill Bit Finish/Coating Oxide Flute Length (Inch) 2-1/4 Primary Workpiece Material Code K, N, P Shank Diameter (Decimal Inch) 0.2340 Overall Length (Inch) 3-21/32 Series A1222 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 1.8900 Maximum Drilling Depth (mm) 48.00 Shank Length (mm) 36.00 Shank Length (Decimal Inch) 1.4170 Drill Point Length (mm) 1.39 Drill Point Length (Decimal Inch) 0.0546 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.2000 – 0.2500 Specification Designation BS, DIN UNSPSC Code 23241634

Reviews

There are no reviews yet.

Be the first to review “Walter Titex Letter A 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 3-21/32 OAL, Standard Point 5059323 – 01464015”

Your email address will not be published. Required fields are marked *
