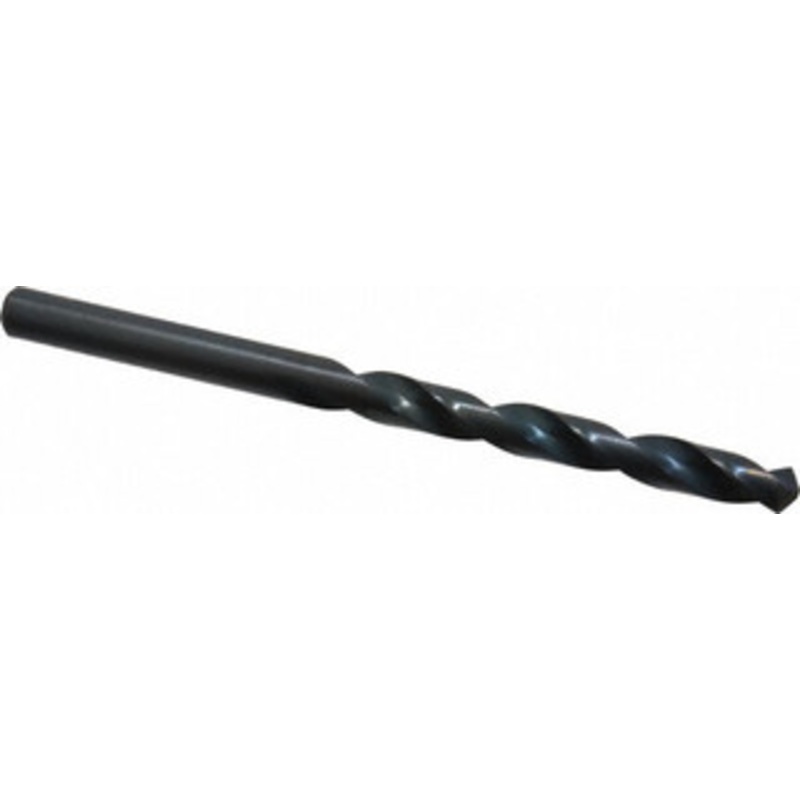

Walter Titex Letter J 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-9/32 OAL, Standard Point 5058273 – 77850964

Walter Titex Letter J 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-9/32 OAL, Standard Point 5058273 – 77850964

$5.96 $9.93
Review

Walter Titex Letter J 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-9/32" OAL, Standard PointManufacturer Part #: 5058273S/N: 77850964UNSPSC: 23241634(Minimum Order Quantity=1, Package Quantity=1)Specificat

SKU: 7.7850964E7 Category:
Description Reviews (0)

Walter Titex Letter J 118 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-9/32″ OAL, Standard Point

Manufacturer Part #: 5058273

S/N: 77850964

UNSPSC: 23241634

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Letter) J Drill Bit Size (Decimal Inch) 0.2770 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 118 Flute Type Spiral Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Cast Iron, Steel Coolant Through No Number of Flutes 2 Drill Bit Finish/Coating Oxide Flute Length (Inch) 2-23/32 Primary Workpiece Material Code K, P Shank Diameter (Decimal Inch) 0.2770 Overall Length (Inch) 4-9/32 Spiral Type Regular Series A1211 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 2.2440 Maximum Drilling Depth (mm) 57.00 Shank Length (mm) 40.00 Shank Length (Decimal Inch) 1.5740 Drill Point Length (mm) 2.11 Drill Point Length (Decimal Inch) 0.0832 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade General Purpose Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 Specification Designation BS, DIN UNSPSC Code 23241634
