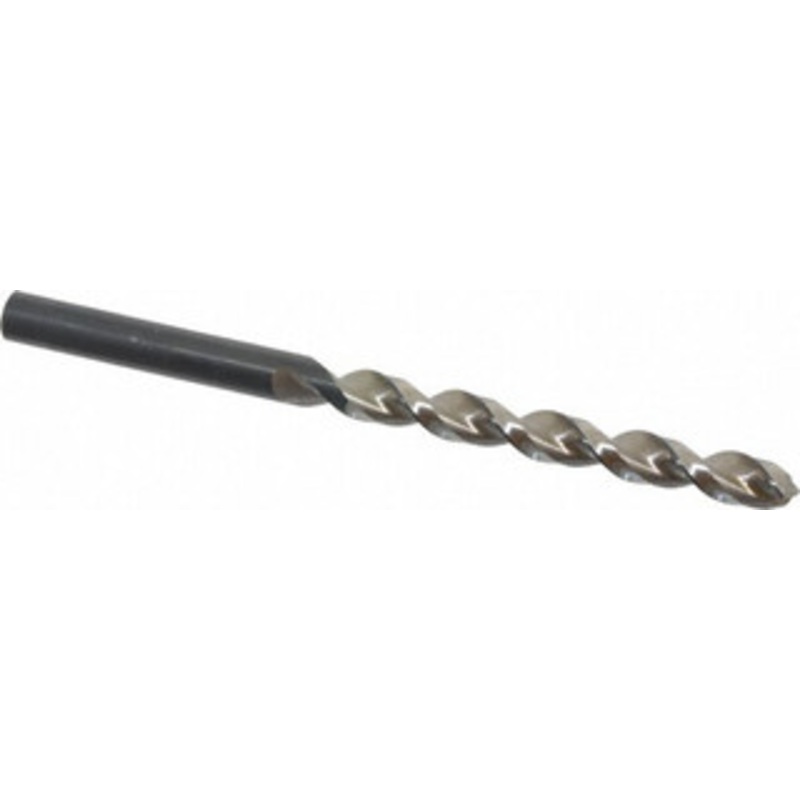

Walter Titex Letter J 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-9/32 OAL, Standard Point 5059332 – 01464106

Walter Titex Letter J 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-9/32 OAL, Standard Point 5059332 – 01464106

$22.90 $38.17
Review

Walter Titex Letter J 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-9/32" OAL, Standard PointManufacturer Part #: 5059332S/N: 01464106UNSPSC: 23241634(Minimum Order Quantity=10, Package Quantity=1)(Pleas

SKU: 1464106.0 Category:
Description Reviews (0)

Walter Titex Letter J 130 High Speed Steel Jobber Drill Oxide Finish, Right Hand Cut, Parabolic Flute, Straight Shank, 4-9/32″ OAL, Standard Point

Manufacturer Part #: 5059332

S/N: 01464106

UNSPSC: 23241634

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Drill Bit Size (Letter) J Drill Bit Size (Decimal Inch) 0.2770 Drill Bit Material High Speed Steel Drill Point Angle (Degrees) 130 Flute Type Parabolic Cutting Direction Right Hand Point Type Standard Primary Workpiece Material Cast Iron, Non-Ferrous Metal, Steel Coolant Through No Drill Bit Finish/Coating Oxide Flute Length (Inch) 2-23/32 Primary Workpiece Material Code K, N, P Shank Diameter (Decimal Inch) 0.2770 Overall Length (Inch) 4-9/32 Series A1222 Tool Application Blind Hole, Stack Drilling Flute By Diameter Ratio 8xD Maximum Drilling Depth (Decimal Inch) 2.2440 Maximum Drilling Depth (mm) 57.00 Shank Length (mm) 40.00 Shank Length (Decimal Inch) 1.5740 Drill Point Length (mm) 1.64 Drill Point Length (Decimal Inch) 0.0646 Drill Bit Diameter Tolerance h8 Web Thinning Web-Thinned Web Configuration Tapered Shank Type Straight-Cylindrical Tool Performance High Performance Standards ANSI, ISO Drill Bit Grade High Performance Drill Bit Size Range (Decimal Inch) 0.2500 – 0.3000 Specification Designation BS, DIN UNSPSC Code 23241634
