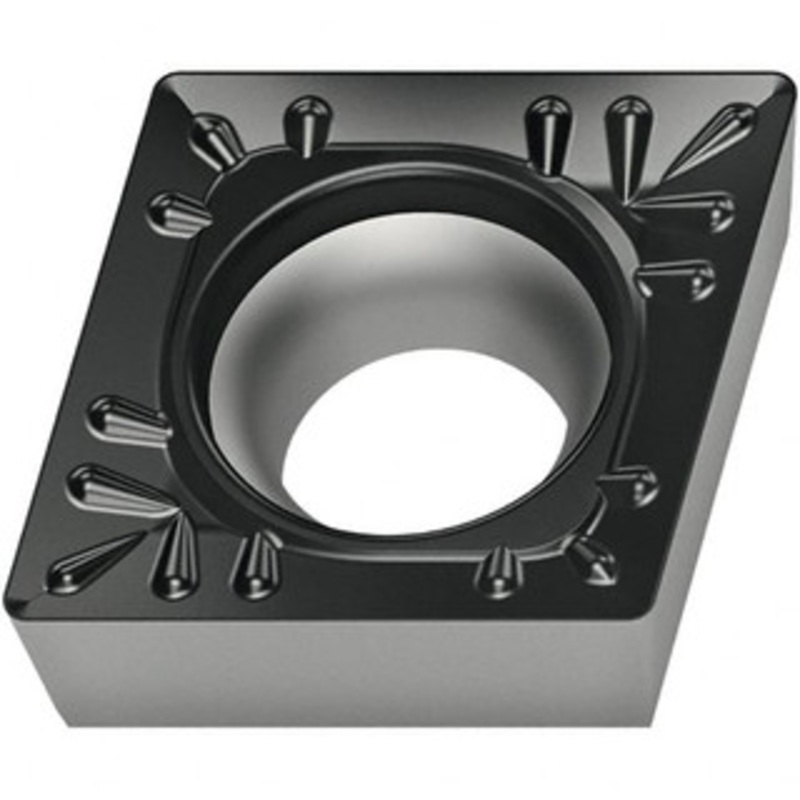

Walter Tools CCMT120408-RM4 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 12.9mm Long, 12.7mm Inscribed Circle, 0.8mm Corner Radius, 4.76mm Thick, 80 Rhombic 80, Series CCMT-RM4 6839106 – 47312764

Walter Tools CCMT120408-RM4 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 12.9mm Long, 12.7mm Inscribed Circle, 0.8mm Corner Radius, 4.76mm Thick, 80 Rhombic 80, Series CCMT-RM4 6839106 – 47312764

$17.14 $28.57
Review

Walter Tools CCMT120408-RM4 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 12.9mm Long, 12.7mm Inscribed Circle, 0.8mm Corner Radius, 4.76mm Thick, 80 Rhombic 80, Series CCMT-RM4Manufacturer Part #: 6839106S/N: 47312764UNSPSC: 23000000(Minimum Ord

SKU: 4.7312764E7 Category:
Description Reviews (0)

Walter Tools CCMT120408-RM4 WSM20S Turning Insert TiAlN+Al2O3+(Al) Finish, Neutral, 12.9mm Long, 12.7mm Inscribed Circle, 0.8mm Corner Radius, 4.76mm Thick, 80 Rhombic 80, Series CCMT-RM4

Manufacturer Part #: 6839106

S/N: 47312764

UNSPSC: 23000000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 7 Insert Style CCMT Corner Radius (mm) 0.80 Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80degree Manufacturer Grade WSM20S Coating/Finish TiCN, Al2O3, Al Wiper Edge No Insert Hand Neutral Insert Thickness 4.76 Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series CCMT-RM4 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Inscribed Circle (mm) 12.70 Insert Material Carbide Insert Shape Diamond 80 Number Of Cutting Edges 2 Insert Shape Code C Hole Diameter (Decimal Inch) 0.2170 Hole Diameter (Mm) ( – 0 Decimals) 5.50 Maximum Depth of Cut (mm) 12.90 Maximum Depth of Cut (Decimal Inch) 0.5080 Insert Holding Method Screw Clearance Code C Tolerance Code M Coating Process PVD Length Range (Decimal Inch) 0.5000 – 0.6000 Rake Positive Insert Length (mm) 12.90 Insert Length (Decimal Inch) 0.5080 Primary Workpiece Material Stainless Steel, Superalloys & Titanium Primary Workpiece Material Code M, S Secondary Workpiece Material Steel Secondary Workpiece Material Code P Iso Code CCMT120408-RM4 WSM20S Standards ANSI, ISO Manufacturers Catalog Number 6839106 Material Grade M20, S20, P20 Proprietary Coating Designation WSM20S Lead Angle 80degree Coating Classification PVD Chip Breaker RM4 Rake Angle 12 Cutting Edge Style Chamfered & Honed Industry Standard Number CCMT432-RM4 WSM20S Width (Decimal Inch – 4 Decimals) 0.5080in Width (mm – 2 Decimals) 12.90 Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
