Walter Tools WNMG432-MK5 WKK10S Carbide Turning Insert TiCN/Al2O3/TiCN Finish, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Trigon 6353360 – 66332172

Walter Tools WNMG432-MK5 WKK10S Carbide Turning Insert TiCN/Al2O3/TiCN Finish, 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Trigon 6353360 – 66332172

$16.45 $27.42
Review

Walter Tools WNMG432-MK5 WKK10S Carbide Turning Insert TiCN/Al2O3/TiCN Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 TrigonManufacturer Part #: 6353360S/N: 66332172UNSPSC: 23242105(Minimum Order Quantity=10, Package Quantity=1)(Please order in mul

SKU: 6.6332172E7 Category:
Description Reviews (0)

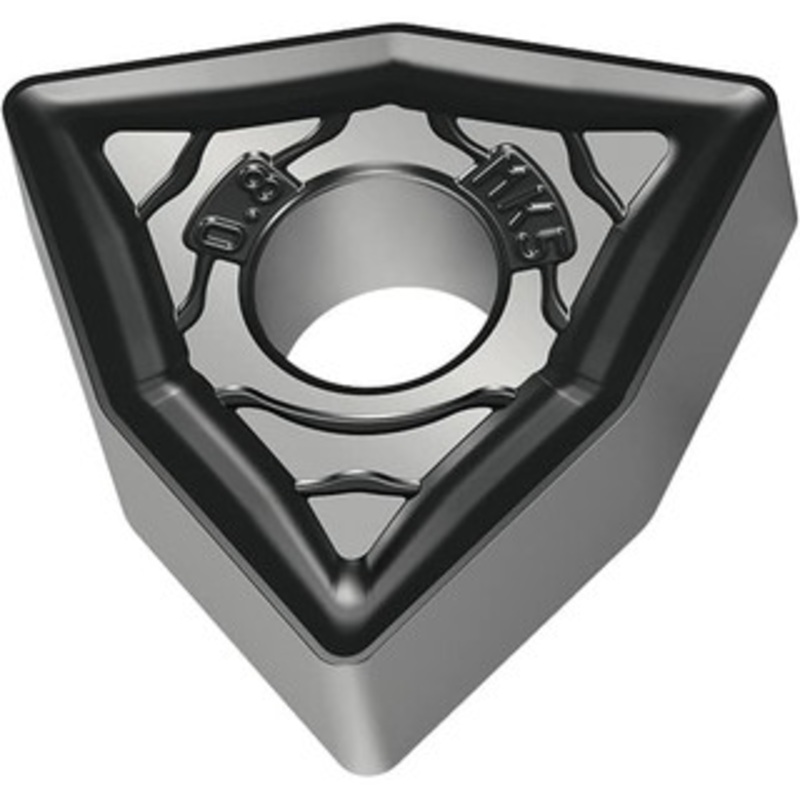

Walter Tools WNMG432-MK5 WKK10S Carbide Turning Insert TiCN/Al2O3/TiCN Finish, 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80 Trigon

Manufacturer Part #: 6353360

S/N: 66332172

UNSPSC: 23242105

(Minimum Order Quantity=10, Package Quantity=1)

(Please order in multiples of 10)

Specifications:

Relief Angle 0 Insert Style WNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80degree Manufacturer Grade WKK10S Coating/Finish TiCN, Al2O3, TiCN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series WNMG-MK5 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Trigon Number Of Cutting Edges 6 Insert Shape Code W Hole Diameter (Decimal Inch) 0.2030 Maximum Depth of Cut (mm) 5.00 Maximum Depth of Cut (Decimal Inch) 0.1960 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process CVD Length Range (Decimal Inch) 0.6500 – 0.7000 Rake Negative Insert Length (Decimal Inch) 0.6840 Primary Workpiece Material Cast Iron Primary Workpiece Material Code K Secondary Workpiece Material Hard Material Secondary Workpiece Material Code H Iso Code WNMG080408-MK5 WKK10S Standards ANSI, ISO Manufacturers Catalog Number 6353360 Material Grade H30, K10 Proprietary Coating Designation WKK10S Lead Angle 80degree Coating Classification CVD Chip Breaker MK5 Rake Angle 14 Cutting Edge Style Chamfered & Honed Industry Standard Number WNMG432-MK5 WKK10S Width (Decimal Inch – 4 Decimals) 0.6840in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
