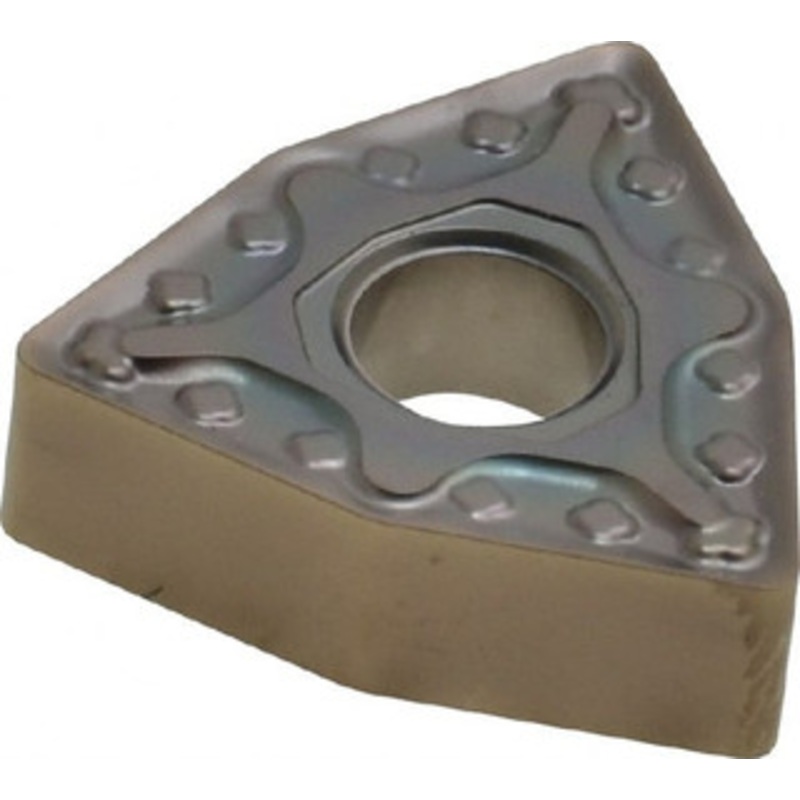

Walter Tools WNMG432-NM4WSM20 Carbide Turning Insert 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Trigon 5585373 – 73818486

Walter Tools WNMG432-NM4WSM20 Carbide Turning Insert 1/2 Inscribed Circle, 1/32 Corner Radius, 80 Trigon 5585373 – 73818486

$16.45 $27.42
Review

Walter Tools WNMG432-NM4WSM20 Carbide Turning Insert 1/2" Inscribed Circle, 1/32" Corner Radius, 80 TrigonManufacturer Part #: 5585373S/N: 73818486UNSPSC: 23242105(Minimum Order Quantity=1, Package Quantity=1)Specifications:Relief Angle0Insert StyleWNMGCor

SKU: 7.3818486E7 Category:
Description Reviews (0)

Walter Tools WNMG432-NM4WSM20 Carbide Turning Insert 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80 Trigon

Manufacturer Part #: 5585373

S/N: 73818486

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Relief Angle 0 Insert Style WNMG Corner Radius (Inch) 1/32 Corner Radius (Decimal Inch) 0.0315 Included Angle 80degree Manufacturer Grade WSM20 Coating/Finish TiAlN, Al2O3, ZrCN Wiper Edge No Insert Hand Neutral Insert Thickness (Inch) 3/16 Insert Thickness (Decimal Inch) 0.1875 Series WNMG-NM4 Inscribed Circle (Inch) 1/2 Inscribed Circle (Decimal Inch) 0.5000 Insert Material Carbide Insert Shape Trigon Number Of Cutting Edges 6 Insert Shape Code W Hole Diameter (Decimal Inch) 0.2030 Hole Diameter (Mm) ( – 0 Decimals) 5.13 Maximum Depth of Cut (Decimal Inch) 0.2278 Insert Holding Method Clamp, Pin Clearance Code N Tolerance Code M Coating Process PVD Length Range (Decimal Inch) 0.6500 – 0.7000 Rake Negative Insert Length (Decimal Inch) 0.6840 Primary Workpiece Material Stainless Steel, Superalloys & Titanium Primary Workpiece Material Code M, S Secondary Workpiece Material Steel Secondary Workpiece Material Code P Iso Code WNMG080408-NM4 WSM20 Standards ANSI, ISO Manufacturers Catalog Number 5585373 Material Grade M20, P20, S20 Proprietary Coating Designation Multilayer Coating Lead Angle 80degree Coating Classification PVD Chip Breaker NM4 Rake Angle 20 Cutting Edge Style Honed Industry Standard Number WNMG432-NM4 WSM20 Width (Decimal Inch – 4 Decimals) 0.6840in Multi-Use Tool Yes Full Radius No Multi-Use Application Turning, Facing, Boring UNSPSC Code 23242105 Insert Size Code 432
