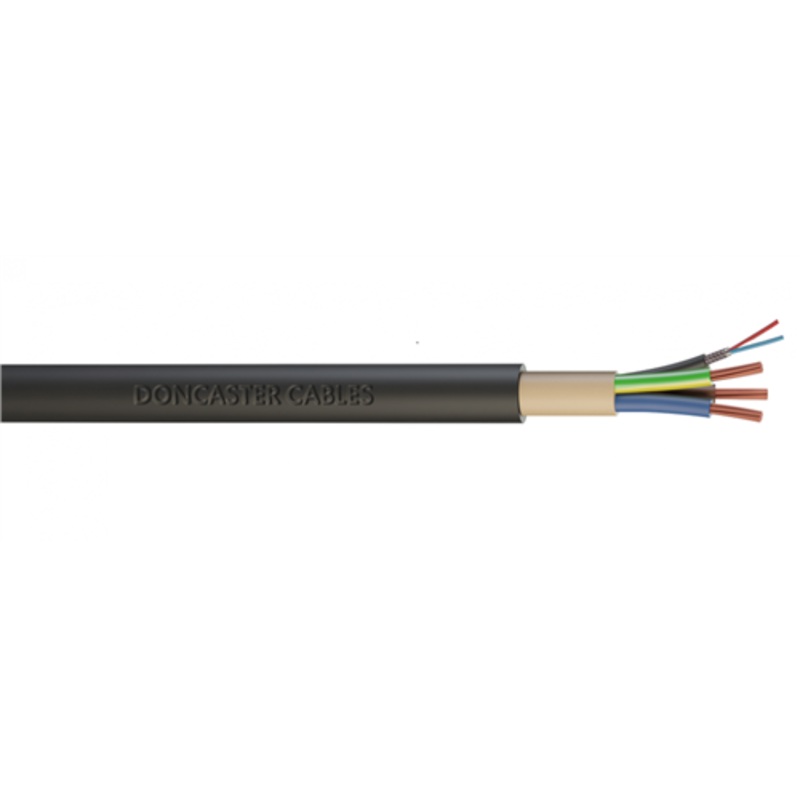

This cable is designed for use in the installation of electric vehicle charge points. The cable incorporates power conductors and a 2 core screened data cable, encapsulated in a double sheathed design for extra protection. Whilst designed for use in electric vehicle charge points, the cable is also suitable for other installations where power and a 2 core data/signal cable is required.

• Power and data combined in one cable
• Less storage space required
• Easier to handle
• Easier to route through walls and buildings
• Saves installation time
• Gives a cleaner, neater looking installation

Technical Specification:
Minimum Operating Temperature: -15C
Maximum Operating Temperature: 90C
Minimum Bending Radius: 8x
Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228
Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3
Bedding: CarbonTek
Steel Wire Armour: Galvanised steel wire armour (where applicable)
Sheathing: CarbonTek
Energy Monitor Cable: 2 core screened energy monitor cable
Number and nominal CSA of conductors: 3 x 6.0mm + DATA
Nominal stranding of conductor: 7/1.04mm
Nominal radial thickness of insulation: 0.7mm
Nominal overall diameter of bedding: 12.0mm
Galv. Steel Wire Armour: 1.25mm
Nominal radial thickness of sheath: 1.0mm
Approx. overall diameter: 16.8mm
Approx. weight: 625kg/km
Maximum current rating: 58A
Voltage drop: 7.9 mV/A/m
