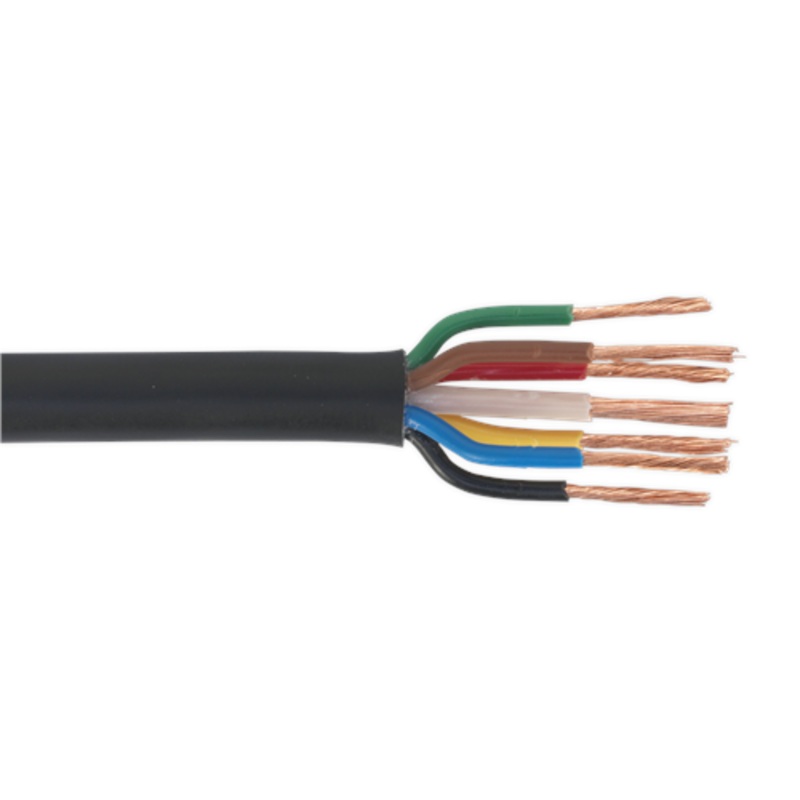

Thin wall automotive cable.
Seven (6 + 1) core conductor.
Core Colours: Black, Blue, Brown, Green, Red, White, Yellow.
Cross Sections: 6 x 1mm, 1 x 2mm.
Current Ratings: 16.5A, 25A.
RoHS Compliant.

Thin wall multi-core cable supplied on a cardboard reel. RoHS compliant.

Thin wall automotive cable.
Seven (6 + 1) core conductor.
Core Colours: Black, Blue, Brown, Green, Red, White, Yellow.
Cross Sections: 6 x 1mm, 1 x 2mm.
Current Ratings: 16.5A, 25A.
RoHS Compliant.
Model No. AC28307CTH

Technical Specification:

Amps: 16.5A, 25A
Cable Type: Thin Wall
Colour: Sheath; Black, Core; Black, Blue, Brown, Green, Red, White, Yellow
Conductor Specification: 6 x 32/0.20mm, 1 x 28/0.30mm
Core Type: 6 + 1 Core
Length: 30m
Nett Weight: 3.97kg
Section: 6 x 1mm, 1 x 2mm

Dimensions: Length: 218mm x Height: 111mm
Weight: 3.978Kg
Warranty: Consumable
