General Features

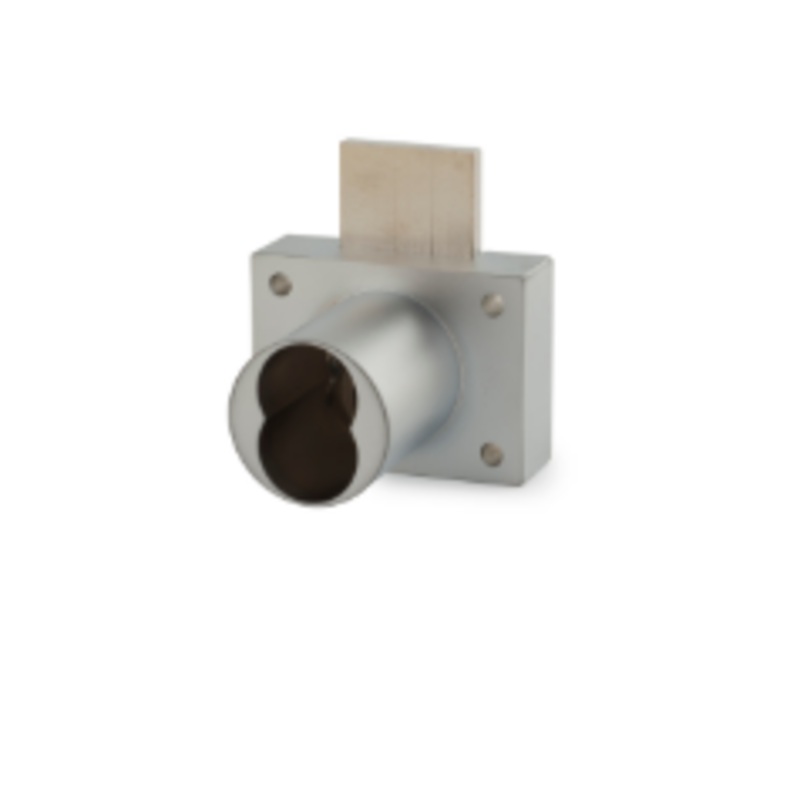

• Cabinet lock – deadbolt drawer lock
• Accepts Medeco/Yale IC core
• Standard function: locks are non-handed with key removable in locked and unlocked position
• Optional key-retaining* function: for part-numbers and handing seekey retaining chart
• Barrel diameter: 1-1/8″

• Barrel length 1-3/8″
• 26D or US3 finish(see finish chart)
• Packed 10 per box
• *Key-retaining = key removable in the locked position only
• WARNING (California Proposition 65)

Available Separately

• Plastic spacers10-348, 10-349, 10-350
• Angle strikes12-1, 12-2, 12-3
• Bar strikes56-1, 10-054, 10-055, 10-057, 10-058
• Slotted strike10-052, 12-5
• Frameless drawer strike12-4
• Trim ringTR78
• Through-bolt trim plate 1/8″ thicknessETS1-125
• Through-bolt trim plate 1/4″ thicknessETS1-250
• Through-bolt trim pullETS1-PL
• Through-bolt trim spacer templateETST1

Cores for Locks

• 3 ea. plastic spacers10-350
• All locks sold less core
• Medeco 6-pin IC core cylinder #32-0201. Requires Medeco #94-0009 cylinder spacer. For more information see.www.medeco.com
• 1 ea. 1/4″ plastic bar strike10-054
• 1 ea. 1/2″ plastic bar strike10-055
• Yale 1210 Series 6-pin IC core cylinder. For more information see.www.yalelock.com
• ASSA’s Yale 6 pin compatible large format IC core. For more information see.www.assalock.com

TestingPassed ANSI/BHMA A156.11 Grade 1 performance requirements.Documents
