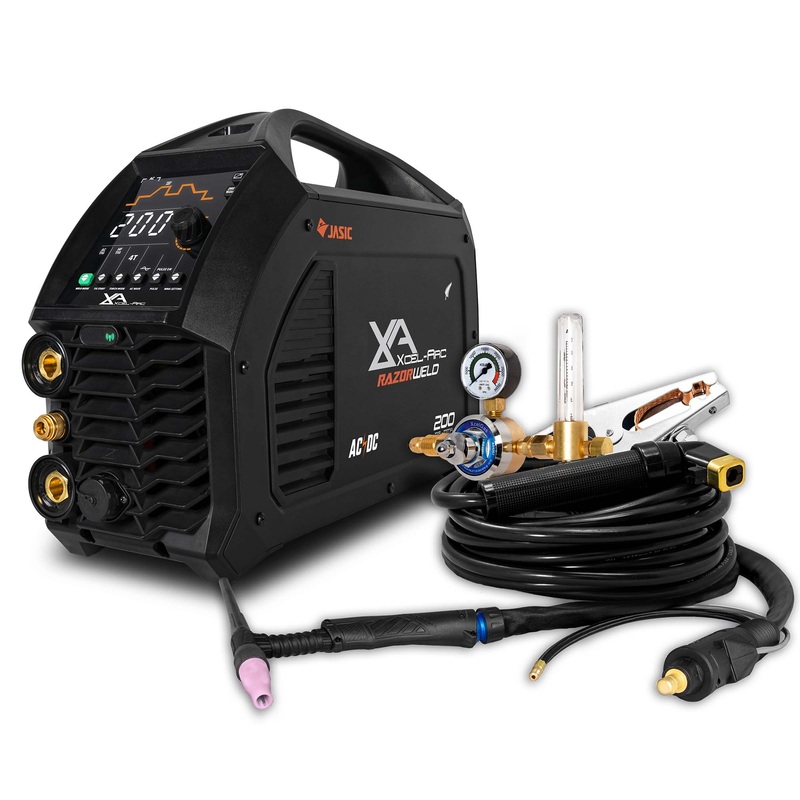

RAZORWELD 200 AC/DC PFC TIG Welder
Get incredible results from start to finish with this professional-grade TIG welder.

Effortlessly weld any metal with the high-frequency AC/DC TIG
The ultimate combination of AC and DC available with Mixed Arc settings
Switch your AC welds to suit your needs with the choice of three waveforms
A 5-year warranty to reflect our confidence in this machine

Supplied with:

RAZORWELD 200 AC/DC PFC TIG Welder
ARC T3FX Flexi Tig Torch x 4m
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Argon Regulator
Operating Manual

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE 240V Single Phase

SUPPLY PLUG 10 AMP

Ieff (A) 9.5

RATED OUTPUT 5-200A

NO LOAD VOLTAGE (V) 65

PROTECTION CLASS IP23S

INSULATION CLASS H

MINIMUM GENERATOR (kVA) 9.0

DINSE CONNECTOR 35/50

STANDARD AS/NZ60974-1

SUITABLE MATERIAL
TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years) 5

TIG SPECIFICATIONS
TIG FUNCTION TYPE AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE 5-200A

TIG DUTY CYCLE at 40C: 20% at 200A, 60% at 115A, 100% at 90A

TIG WELDING THICKNESS RANGE 1-8mm

STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE 20-160A

STICK DUTY CYCLE at 40C: 15% at 160A, 60% at 80A, 100% at 62A

STICK ELECTRODE RANGE 2.5-4.0mm

STICK WELDING THICKNESS RANGE 2-10mm

DIMENSIONS (mm) 500170340mm

WEIGHT (kg) 11.7kg

MACHINE FEATURES
VRD Yes

FOOT CONTROL CONNECTION YES

THERMAL OVERLOAD PROTECTION Over Temperature Warning
