XA-MIG185V-K | Low-Cost MIG, DC-TIG & MMA (Stick) Compact Inverter Welder. 230V Single Phase 185 Amp with 10 Amp Plug

Modern IGBT inverter technology
Fitted with and Certified for use with 10 Amp Plug
Digital Meters
Generator compatible (recommend 7.5 kVA minimum)
2-Year Machine Warranty
AS/NZ 60974-1 Standard Compliant

MIG function
Gas/Gasless applications
Gear-driven internal wire feeder with 5kg (200mm) spool capacity
Step-less voltage and wire feed control
Excellent results using Co2 gas with solid wire
Spool Gun connection – MIG DUTY CYCLE at 40C, 10% at 180A

DC-TIG function
Lift-Arc ignition (prevents tungsten sticking during arc ignition)
Ultra smooth DC TIG welding current
TIG Torch is optional and extra

TIG DUTY CYCLE at 40C 10% at 160A
MMA function
VRD (Voltage Reduction Device) for added safety
Hot start (improves electrode starting)
Arc Force (boosts current to prevent electrode extinguishing),

STICK DUTY CYCLE at 40C 10% at 160A

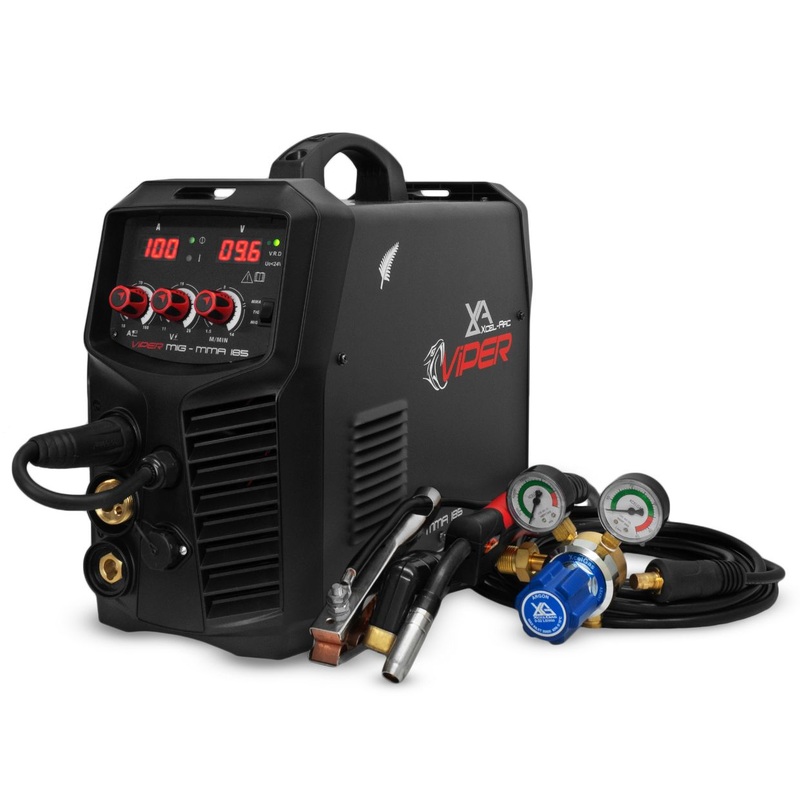

Standard Package includes: Viper-MIG185 Welding Machine, XA15 Mig Torch x 3m, Earth Lead & Arc Lead 16mm x 4m, Regulator

Wire Spool Capacity 5 Kg ( Dia 200mm)
Wire Diameter Range (mm) 0.6, 0.8, 0.9, 1.0
Dimensions (LxWxH) 553 x 214 x 338mm
Weight 12.0 Kg
